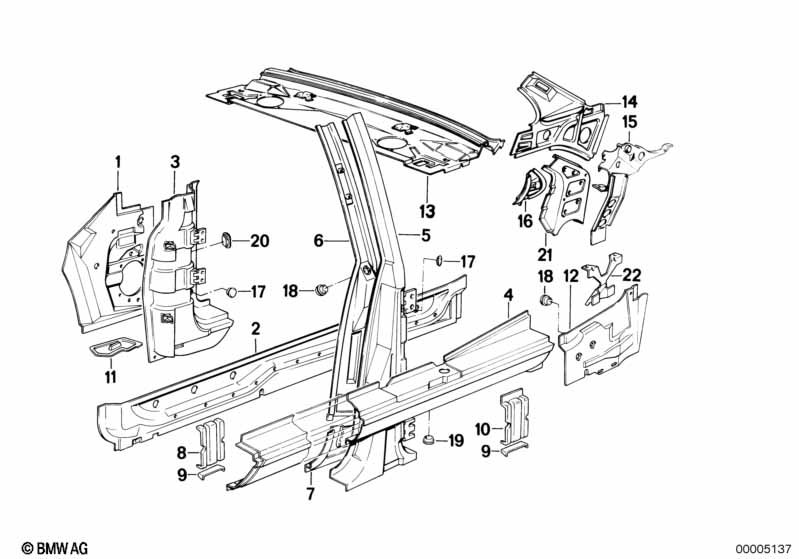

3' E30 325i Single components for body-side frame

Single components for body-side frame
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Covering plate left 1 41211940063 $24.68
01 Covering plate right 1 41211940064 $24.68
02 Left side member 1 41111913087 $80.05
02 Right side member 1 41111913088 $80.05
03 Column front left 1 09/1984 41211959003 $106.49 ENDED
03 Column front right 1 09/1984 41211959004 $106.49 ENDED
04 Covering left 1 41351936505 $83.59 ENDED
04 Covering right 1 41351936506 $83.59 ENDED
05 Column center left w.covering plate 1 41211947459 $156.24
05 Column center right w.covering plate 1 41211947460 $131.37
06 Covering plate left 1 09/1987 41211933437 $156.24 ENDED
06 Column center left w.covering plate 1 41211947459 $156.24
06 Covering plate right 1 09/1987 41211933438 $30.91 ENDED
06 Column center right w.covering plate 1 41211947460 $131.37
07 Covering plate left 1 41211933435 $46.59 ENDED
07 Covering plate right 1 41211933436 $30.41
08 Bracket jack fixture 2 41351913760 $5.42
09 Jack fixture 4 41351913759 $5.34
10 Bracket jack fixture 2 41351916470 $4.20 ENDED
11 Locking plug left 1 51711916123 $1.77
11 Locking plug right 1 51711916124 $1.77
12 Left side member 1 41111925549 $23.10
12 Right side member 1 41111935854 $22.38
13 Partition trunk 1 09/1985 09/1987 41131955164 $311.36 ENDED
13 Partition trunk 1 09/1987 06/1988 41138100404 $321.06 ENDED
13 Partition trunk 1 06/1988 41138100404 $321.06 ENDED
14 Rear window frame left 1 09/1986 41321966473 $84.54 ENDED
14 Rear window frame right 1 09/1986 41321966474 $84.54 ENDED
15 Hinge notch left 1 41621911973 $32.36 ENDED
15 Hinge notch right 1 41621911974 $17.80 ENDED
16 Rear window frame left 1 41321916471 $14.17 ENDED
16 Rear window frame right 1 41321916472 $14.17 ENDED
17 Blind plug D=23MM X 51711904843 $0.58
18 Blind plug D=20MM 6 51711801066 $0.23
19 Blind plug D=14MM 2 33111236826 $0.23
20 Blind plug 20X50 X 51711852763 $1.19
20 Blind plug 33X42,5 X 51711911996 $0.54
22 Braket fuel pump 1 41111979708 $3.58 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
