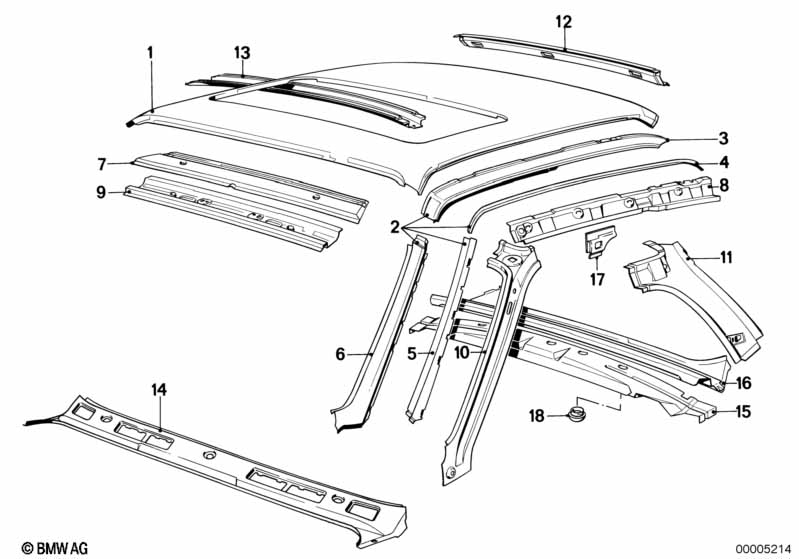

3' E30 325i Apron

Apron
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Roof covering lifting-sliding roof 1 41311936229 $755.38 ENDED
04 Connection plate roof center left 1 41221913769 $15.26 ENDED
04 Connection plate roof center right 1 41221913770 $24.52 ENDED
05 Connection plate roof front left 1 41321913771 $15.36 ENDED
05 Connection plate roof front right 1 41321913772 $15.36 ENDED
06 Left apron 1 41321913773 $24.86 ENDED
06 Right apron 1 41321913774 $24.86
07 Upper apron 1 41321913766 $37.10
09 Upper apron 1 41321913777 $37.10
10 Inner left apron 1 41321913781 $50.50 ENDED
10 Inner right apron 1 41321913782 $29.57
12 Rear window frame upper part 1 41321913780 $28.04
13 Roof bow 1 41321913762 $37.10 ENDED
14 Apron 1 41321913778 $56.41
15 Covering panel rear window frame 1 06/1988 41321913806 $58.59 ENDED
15 Covering panel rear window frame 1 06/1988 41328100499 $58.42
16 Rear window frame bottom part 1 11/1984 09/1987 41321935499 $98.21 ENDED
16 Rear window frame bottom part 1 09/1987 41111972568 $49.52 ENDED
18 Blind plug D=20MM 1 51711801066 $0.23
Notes
  • ENDED = the part has been discontinued (no longer available).
