3' E30 325i Closing system, door, rear

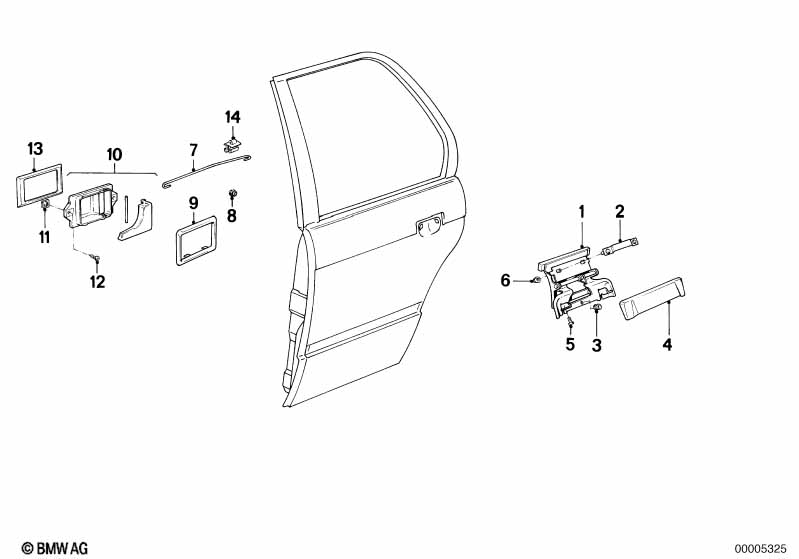

Closing system, door, rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Base door handle left 1 51221906607 $28.65
01 Base door handle right 1 51221906608 $28.65
02 Lock plate 2 51211906540 $1.96
03 Distance rubber 4 51711916537 $3.55
04 Handle 2 51211923996 $14.81
05 Fillister head screw M4X10-Z5 4 51211916992 $0.58 ENDED
06 Stop nut M6 4 02/1994 51211803363 $1.10 ENDED
06 Self-locking hex nut M6 4 07147153450 $0.47
07 Connection rod 2 51221906879 $1.55 ENDED
08 Grommet 4 52208238999 $0.40
09 Cover SCHWARZ 2 51211876043 $7.70
10 Door handle, inside left 1 51211926305 $21.22
10 Door handle inner right 1 51211926306 $21.22
11 Body nut ST4,8-8 4 02/1994 07129925739 $0.18 ENDED
11 Body nut ST 4,8-8-ZNS 4 07129904227 $0.27
12 Fillister head self-tapping screw ST4,8X13-Z2 4 07119907957 $0.18
13 Gasket 2 51211911998 $1.71
14 Clamp 2 51228202809 $0.50
Notes
  • ENDED = the part has been discontinued (no longer available).
