3' E30 325i Spoiler front

Spoiler front

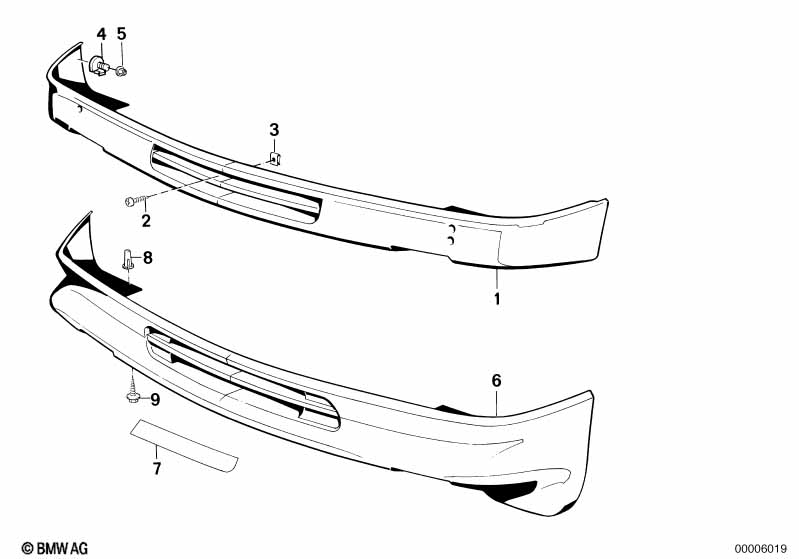

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front apron 1 09/1987 51711933510 $258.91
02 Sheet metal screw B4,8X16 5 09/1985 09/1987 51711916018 $0.12 ENDED
02 Sheet metal screw 4,8X16 5 09/1985 09/1987 25111220298 $0.10
02 Sheet metal screw 4,8X16 5 09/1985 09/1987 07119904929 $0.17 ENDED
02 Sheet metal screw ST4,8X16 5 09/1985 09/1987 07119904185 $0.11
03 Body nut ST4,8-1 5 09/1985 09/1987 07129925735 $0.18 ENDED
03 Set body nut 25 ST4,8-1 5 09/1985 09/1987 07509063124 ENDED
03 Body nut ST4,8-1-ZNS 5 09/1985 09/1987 07129901647 $0.11 ENDED
03 Body nut ST 4,8 5 09/1985 09/1987 07129904222 $0.11 ENDED
03 Plug-in nut M5 5 09/1985 09/1987 46637651465 $1.29
04 Clamping bolt 5 2 09/1985 09/1987 51711936999 $1.07
05 Plastic nut M6 2 09/1985 09/1987 16131176747 $0.53
06 Installing set spoiler front 1 09/1987 51711943868 $508.87 EBA 9780021, ABE 9780593
For vehicles with
National version Canada

L838A=Yes
08 Expanding nut ST 6.3 2 64121379221 $0.60
09 Hex head screw ST6,3X19-C-Z2 2 09/1985 09/1987 07119916967 $0.29
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
