3' E30 325i Front seat rail

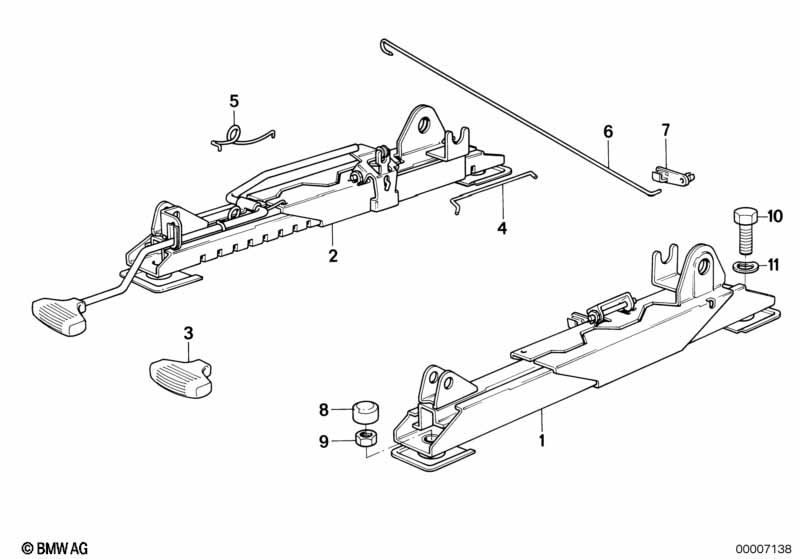

Front seat rail
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Version 310
01 Seat rail outer left 1 09/1985 52101941979 $36.59
01 Seat rail outer right 1 09/1985 52101941980 $44.39
02 Seat rail inner left 1 09/1985 52101941977 $45.88
02 Seat rail inner right 1 09/1985 52101941978 $44.39
03 Handle 2 09/1985 52101934417 $2.41
04 Spring 4 09/1985 52101942251 $0.77 ENDED
05 Spring left 1 09/1985 52101942103 $3.86
05 Spring right 1 09/1985 52101942104 $3.86
06 Connection rod, seat catch 2 09/1985 52101906587 $1.86
07 Clamp 2 09/1985 52101903871 $0.71
08 Covering cap 4 09/1985 52101941999 $0.17 ENDED
09 Hex nut M10 4 09/1985 07/1990 07119922110 $0.20 ENDED
09 Hex nut M10-8-ZNS 4 09/1985 07119915558 $0.88
10 Hex bolt M10X32 4 09/1985 07119915189 $0.82
11 Wave washer B10 4 09/1985 07119932110 $0.09 ENDED
11 Wave washer B10-ZN 4 09/1985 07119932112 $0.11 ENDED
11 Wave washer B10-ZNS 4 09/1985 07/1991 07119932122 $0.38 ENDED
11 Wave washer B10-ZNS3 4 09/1985 07119904463
Notes
  • ENDED = the part has been discontinued (no longer available).
