3' E30 325i BMW sports seat upholstery parts

BMW sports seat upholstery parts

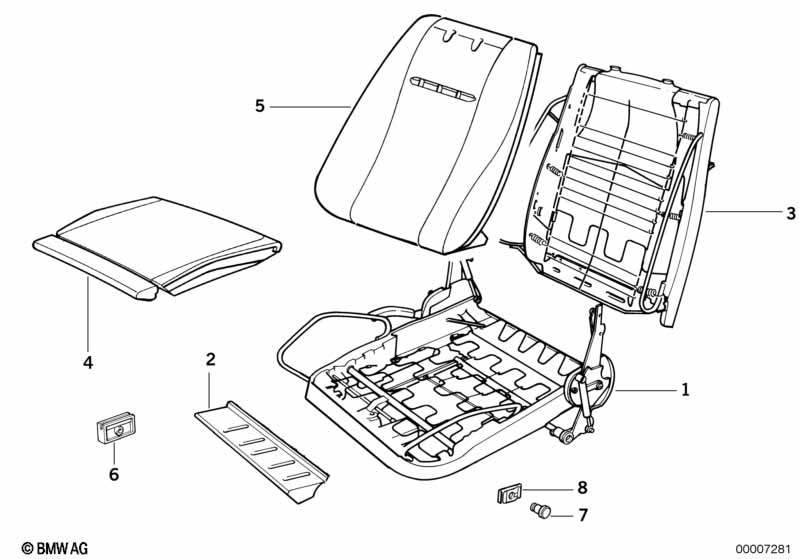

No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Link parts for thigh support:
Stud 5210 1 923 905 +
Clip 5210 1 936 164 = approved
Link parts for thigh support:
Stud 5210 1 923 905 +
Clip 5210 1 936 164 = approved
01 Spring frame seat front left 1 52101945553 $299.26 ENDED
only in conjunction with
-- Lever left 2 52101953689 $27.43
-- Torx bolt M5X20 2 52101954098 $0.20
-- Recessed oval head sheet-metal screw ST3,5X9,5 2 07119902524 $0.82
01 Spring frame seat front right 1 52101945554 $299.26 ENDED
only in conjunction with
-- Lever right 2 52101953690 $21.63
-- Torx bolt M5X20 2 52101954098 $0.20
-- Recessed oval head sheet-metal screw ST3,5X9,5 2 07119902524 $0.82
01 Spring frame seat front left 1 09/1985 52101936225 ENDED
01 Spring frame seat front right 1 09/1985 52101936226 ENDED
02 Carrier thigh support 2 52101922270 $40.74 ENDED
03 Spring frame backrest front 2 52101923444 $110.33
04 Pad seat front 2 52101933390 $91.86
05 Pad seat backrest front 2 52101923907 $101.05
06 Guide thigh support 4 52101940490 $1.21
07 Pin 4 52101923905 $1.48
08 Securing plate 4 51231943279 $0.58
08 Securing plate 4 52101936164 $0.26 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
