3' E30 325i Headlight

Headlight

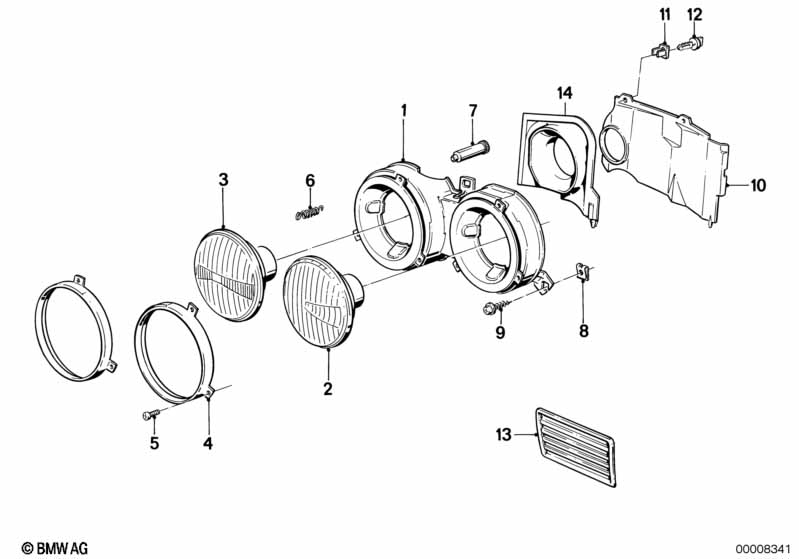

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting frame left 1 09/1987 63121370853 $264.53
01 Supporting frame right 1 09/1987 63121370854 $264.53
02 Low beam insert (sealed beam) 2 09/1987 63121373061 $36.05 ENDED
02 Low beam insert (sealed beam) 2 09/1987 63121373059 ENDED, +core
03 High beam insert (sealed beam) 2 09/1987 63121373060 $25.82 ENDED
04 Glass holding frame 4 09/1987 63121362477 $32.43
05 Fillister head self-tapping screw B3,9X8 X 09/1987 63121359777 $0.42
06 Tension spring 4 09/1987 63121359719 $2.68
07 Adjusting nut 8 09/1987 63121360689 $2.57
08 Body nut ST6,3-1-ZN 6 09/1987 07129925742 $0.25 ENDED
08 Body nut ST6,3-1 6 09/1987 07129901663 $0.20 ENDED
08 Body nut ST6,3-1-ZNS3 6 09/1987 07129904231
09 Sheet metal screw 6 09/1987 63121352070 $0.62
10 Covering right 1 09/1987 51711916192 $5.69 ENDED
10 Covering right 1 09/1987 51711965252 $8.73
10 Covering left 1 09/1985 09/1987 51711942085 $6.35 ENDED
10 Covering left 1 09/1985 09/1987 51711965241 $8.73
11 Lock insert 4 09/1987 51711916199 $0.32
12 Lock 4 09/1987 51711916197 $1.35
14 Connector 1 09/1985 09/1987 51711942084 $3.83
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
