3' E30 325i Single components for headlight

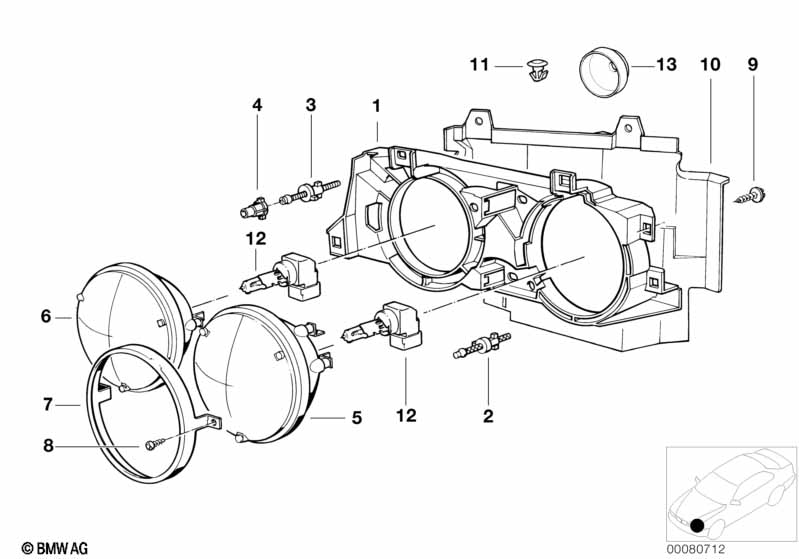

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting frame left 1 06/1989 63121370853 $264.53
01 Supporting frame right 1 06/1989 63121370854 $264.53
02 Tension spring 4 06/1989 63121359719 $2.68
03 Adjusting nut 8 06/1989 63121360689 $2.57
04 Black rubber bushing 4 06/1989 63121378369 $2.70
05 Low beam insert (sealed beam) 2 06/1989 63121373061 $36.05 ENDED
05 Low beam insert (sealed beam) 2 06/1989 63121373059 ENDED, +core
06 High beam insert (sealed beam) 2 06/1989 63121373060 $25.82 ENDED
07 Glass holding frame 4 06/1989 63121362477 $32.43
08 Fillister head self-tapping screw B3,9X8 X 06/1989 63121359777 $0.42
09 Sheet metal screw 6 06/1989 63121352070 $0.62
11 Push-button MITTELGRAU 4 51491946195 $0.42
13 Cap 1 51711946592 $3.70
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
