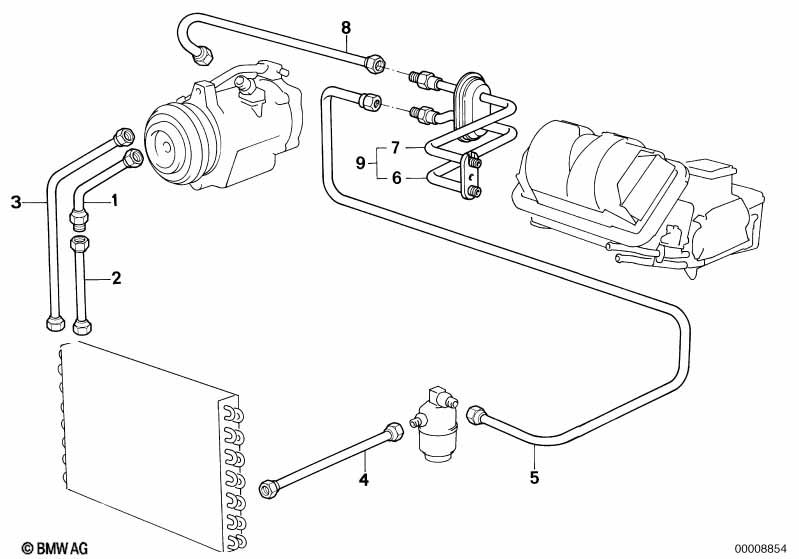

3' E30 325i Coolant lines

Coolant lines
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Use the 325e for replacement part on
the 325 and 325es.
03 Tubing 1 64531385359 $91.33
only in conjunction with
-- RP A/C compressor 1 64521378387 ENDED
03 Pressure hose assy compressor-condenser R12/R134A 1 09/1985 64538391052 $103.33
04 Condenser-dryer pressure hose assy R12/R134A 1 09/1985 09/1987 64539067572 $125.97 ENDED
04 Condenser-dryer pressure hose assy R12/R134A 1 09/1987 64538391041 $92.38
05 Pipe-dryer pressure hose 1 09/1987 64531380094 $135.37 ENDED
05 Pipe-dryer pressure hose R12 1 09/1987 03/1992 64531381740 $87.20
06 Pipe-dryer pressure hose R12/R134A 1 64538391047 $114.61 ENDED
07 Suction pipe evaporator-compressor R12/R134A 1 64538391048 $134.32
08 Suction pipe evaporator-compressor R12 1 03/1992 64531377821 $164.88 ENDED
08 Suction pipe evaporator-compressor R134A 1 03/1992 64538391051 $226.35
Notes
  • ENDED = the part has been discontinued (no longer available).
