3' E21 318i Brake master cylinder

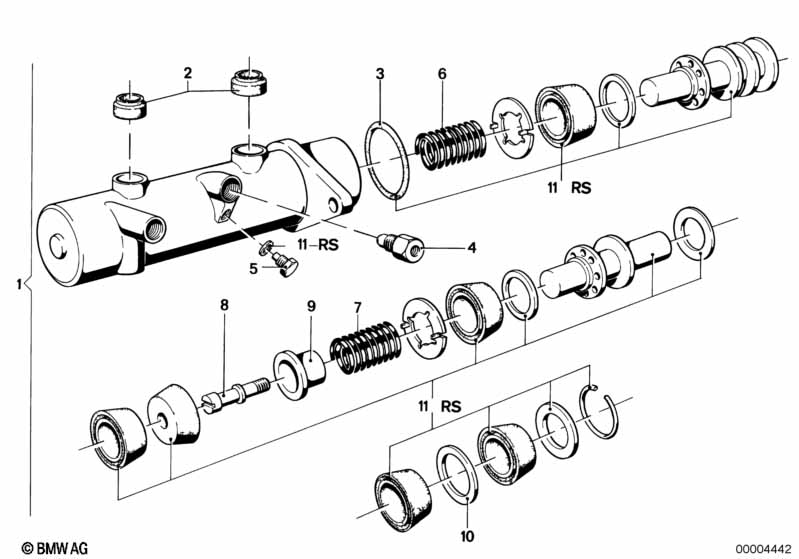

Brake master cylinder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake master cylinder D=20,64MM 1 34311120032 $354.71
02 Sealing plug 2 34311160133 $5.08
03 O-ring ATE 1 34314650345 $3.25
04 Pre-pressure valve 1 34311121798 $23.39 ENDED
04 Pre-pressure valve 1 34314650332 $21.70 ENDED
05 Stopper bolt outer ATE 1 34311103475 $4.98 ENDED
06 Compression spring primary 1 34311100747 ENDED
07 Compression spring secondary 1 34311100748 $0.86 ENDED
08 Stopper bolt inner D=22,2 1 34311103478 ENDED
09 Sleeve 1 34311116691 ENDED
10 Intermediate ring 1 34311103472 ENDED
11 Repair kit brake master cylinder 1 34311156133 $157.36
Notes
  • ENDED = the part has been discontinued (no longer available).
