1' F20 116i Waterpump - Thermostat

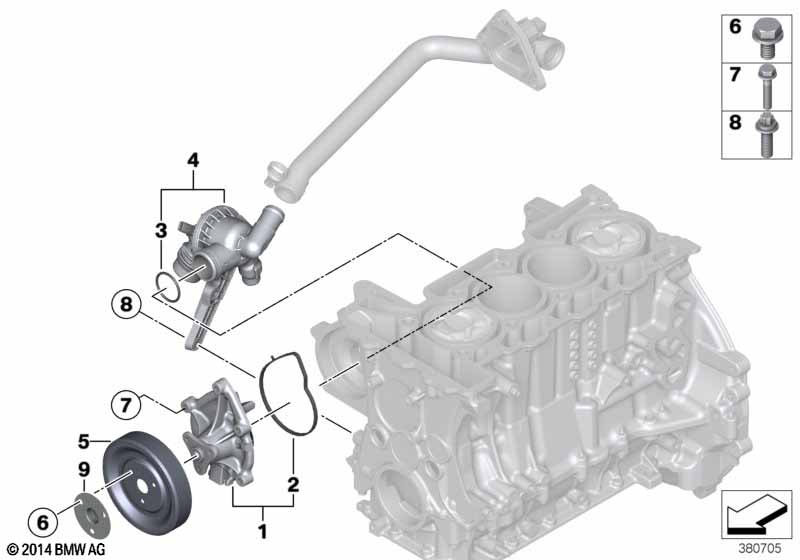

Waterpump - Thermostat
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Coolant pump, mechanical 1 11517648827
only in conjunction with
-- Hex bolt with washer M6X30 5 07147543362 $0.55
-- Hex bolt with washer M6X12-U1-8.8 3 07119904517 $0.36
02 Profile-gasket 1 11/2012 11517552836 $6.02
03 O-ring 35X3 1 11537618806
04 Thermostat housing with thermostat 1 11537600584
05 Drive wheel 1 11517619020
06 Hex bolt with washer M6X12-U1-8.8 3 07119904517 $0.36
07 Hex bolt with washer M6X30 5 07147543362 $0.55
08 ASA-Bolt M8X25-U1-8.8 2 07129905519 $0.59
