1' F20 116i Retrofit kit trailer coupling detachable

Retrofit kit trailer coupling detachable
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Important notice:
The installation instructions are not
included in the retrofit kit. Print out
the latest update of the instructions
from
the Aftersales Assistance Portal (ASAP)
and hand them over to the customer.
If one of the following equipment
options: S2VFA, S5DPA,
S606A, S609A, S6VAA is present the trim
does NOT need to be replaced.
Field installation to retrofit a trailer
coupling to F20 125d, 120xd, F21 125d
and 120xd vehicles is not approved on
vehicles equipped with optional 19"
wheels.
An exchange of the "Lüfterzarge mit
Lüfter" and "Kühlmittelkühler /
ausgelagerten Kühlmittelkühler"
may be necessary.
If on the picture panel in the main
group 17
there is a "Lüfterzarge mit Lüfter" and
"Kühlmittelkühler / ausgelagerten
Kühlmittelkühler" designated to the
OE trailer tow hitch,
then this part number
has to be ordered and installed as well.
For vehicles with
National version Australia





























L810A=No

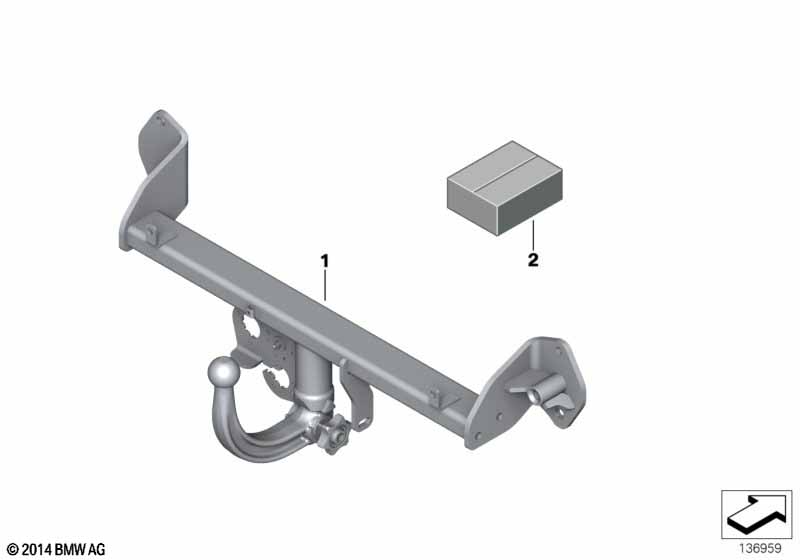

01 Scdel. of tow.hitch+detach.ball head 1 11/2014 71606855502 ENDED, +core, EBA 2231917
01 Scdel. of tow.hitch+detach.ball head 1 71606874227 EBA 2231917
Only together with trim for rear right
02 Retrofit kit, electr. additional parts 1 03/2014 71602221104 EBA 2231917
Please refer to PuMA measure 50562234.
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
  • EBA = Einbauanleitung (Installation instructions)
