1' F20 116i M Performance front flap, carbon ¿ F87

M Performance front flap, carbon ¿ F87
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Note:
The installation instructions are not
in the
retrofit kit.
The latest installation instructions
from
the Aftersales Assistance Portal
(ASAP) must be printed and given to the
customer.
For vehicles with
National version China










L8AAA=No

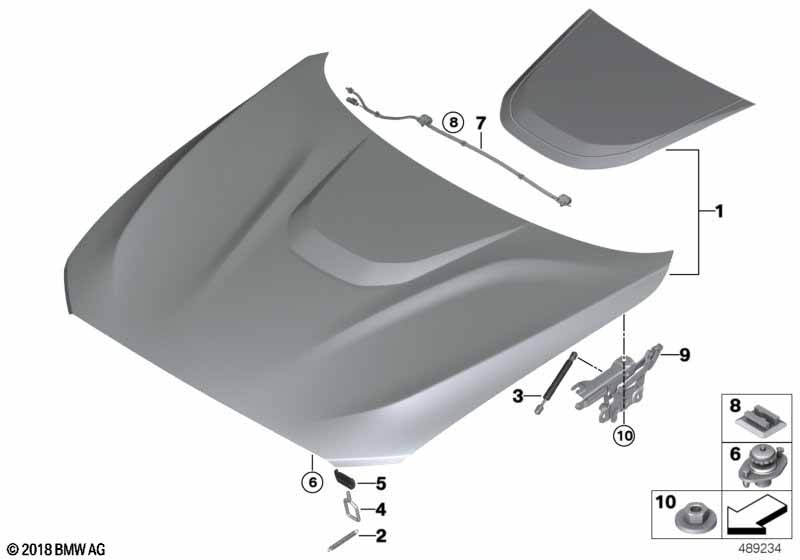

01 Hood carbon M PERFORMANCE 1 41612449807 EBA 0000000, EBA 2459600
only in conjunction with
-- Lifting spring hood latch, lower section 2 51232462098
For paintwork on the front door,
masking tape (Scotch 471 masking tape
or 3M ID 70006710944) is required.
The tape is not included in the parts
set
and must be ordered separately.
-- Gas strut, hood GTS / CS 2 51238066092
For paintwork on the front door,
masking tape (Scotch 471 masking tape
or 3M ID 70006710944) is required.
The tape is not included in the parts
set
and must be ordered separately.
02 Lifting spring hood latch, lower section 2 51232462098
03 Gas strut, hood GTS / CS 2 51238066092
04 Catch bracket 2 51237247080
05 Twist protection 2 51237247079
06 Stop buffer 2 51237291089
07 Nozzle array window washing system 1 61667249646 +core
08 Bracket, plug connection black 1 61131378908 $0.87
09 Left engine hood hinge 1 41617286343 +core
09 Right engine hood hinge 1 41617286344 +core
10 Hex nut with plate M8 4 07146959644
Notes
  • EBA = Einbauanleitung (Installation instructions)
  • +core = plus core charge (possibility of a return of the old part)
