1' F20 118i Turbo charger with lubrication

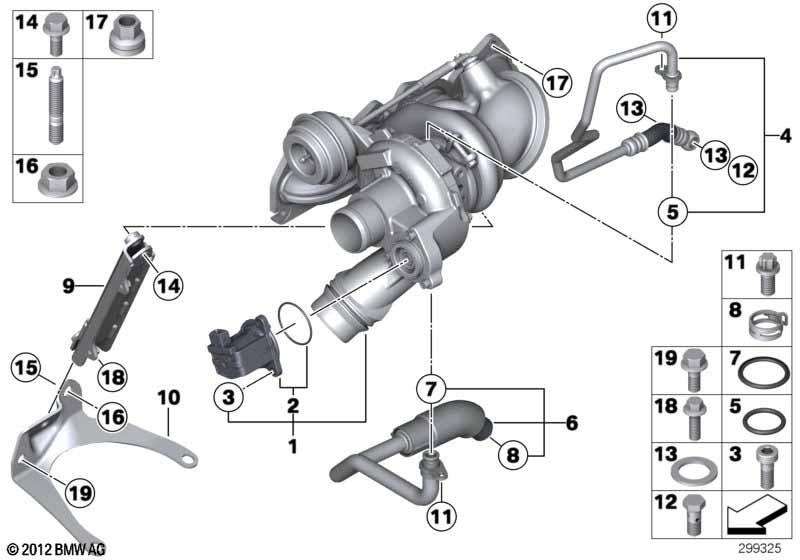

Turbo charger with lubrication
No. Description Supp. Qty  From   Up To  Part Number Price Notes
Please always observe repair
instructions 11 65 020!
01 Exchange turbocharger with exh.manifold 1 12/2011 11627645758
only in conjunction with
-- Support 1 12/2011 11657615516
-- Bracket catalyzer 1 12/2011 11658604854
-- 6-point bolt with disk spring M10X1X26 1 12/2011 11658605263
-- Return pipe 1 12/2011 11427608124 +core
-- ASA-Bolt AM10X1X30 1 12/2011 07119908009
01 Turbocharger with exhaust manifold 1 12/2011 11627643717
only in conjunction with
-- Support 1 12/2011 11657615516
-- Bracket catalyzer 1 12/2011 11658604854
-- 6-point bolt with disk spring M10X1X26 1 12/2011 11658605263
-- ASA-Bolt AM10X1X30 1 12/2011 07119908009
For vehicles with
National version China
Please always observe repair
instructions 11 65 020!

L8AAA=Yes
01 Exchange turbocharger with exh.manifold 1 11627645758
only in conjunction with
01 Turbocharger with exhaust manifold 1 11627643717
only in conjunction with
-- Support 1 11657615516
-- Bracket catalyzer 1 11658604854
-- 6-point bolt with disk spring M10X1X26 1 11658605263
-- Return pipe 1 11427608124 +core
-- ASA-Bolt AM10X1X30 1 07119908009
02 Electr.valve 1 11657602293
03 Fillister-head screw M6X16-8.8-ZNS3 3 07119906392
04 Oil pipe 1 11427608123 +core
05 O-ring 9,7X1,5MM 1 11537610049
06 Return pipe 1 11427608124 +core
07 O-ring 11,5X3 1 17227680667 $2.13
08 Hose clamp D=24MM 1 11657561422 $4.00
09 Support 1 12/2011 11657615516
only in conjunction with
-- Bracket catalyzer 1 12/2011 11658604854
-- 6-point bolt with disk spring M10X1X26 1 12/2011 11658605263
-- ASA-Bolt AM10X1X30 1 12/2011 07119908009
10 Bracket catalyzer 1 11658604854
11 ASA-Bolt M6X12 2 07129905030 $1.53
12 Hollow bolt 1 07119905176 $3.82
13 Gasket ring A12X16-CU 2 07119963132 $0.38
14 Hexagon screw with flange M10X25-10.9 3 12/2011 07119906681
15 Stud bolt 1 11657619369
16 Flange nut M10-10-ZNS3 1 07119904670 $0.64
17 Hex nut with plate M8 10 11627588104 $3.75
Notes
  • +core = plus core charge (possibility of a return of the old part)
