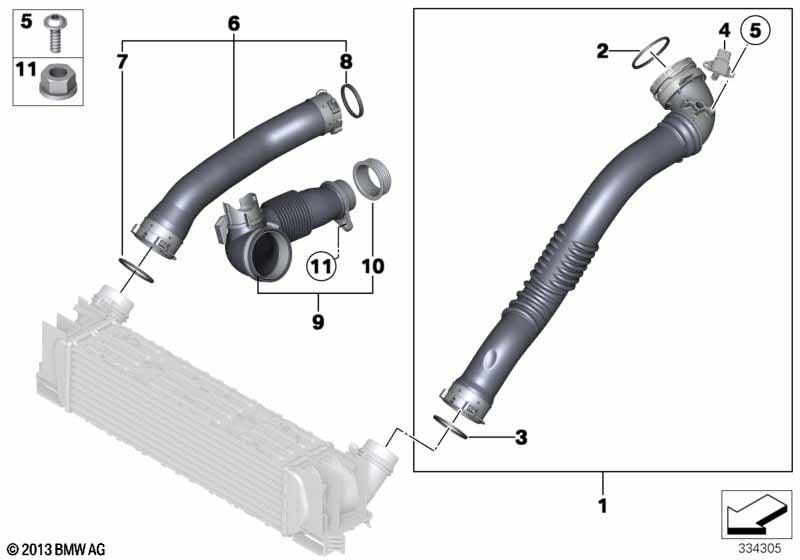

1' F20 125i Charge air induction tract

Charge air induction tract
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Charge air induction tract 1 13717597592
For vehicles with
Automatic transmission
or
Sport automatic transmission

S205A=Yes

S2TBA=Yes
01 Charge air induction tract 1 13717605044
02 Preformed seal 1 13717637707
03 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
03 Preformed seal 1 13718596850
04 Pressure sensor 1 13627843531
05 Fillister head screw with collar 2 07147187828 $0.38
06 Charge air induction tract 1 13717597591
07 Preformed seal 1 11/2016 11618506786 $8.69 ENDED
07 Preformed seal 1 13718596850
08 Preformed seal 1 11618506782
09 Air intake tube 1 13717605638
10 Gasket 2 13717599291
11 Hex nut with plate AM6-8-ZNNIV SI 1 07129904553 $0.64
Notes
  • ENDED = the part has been discontinued (no longer available).
