1' F20 125i Engine Suspension

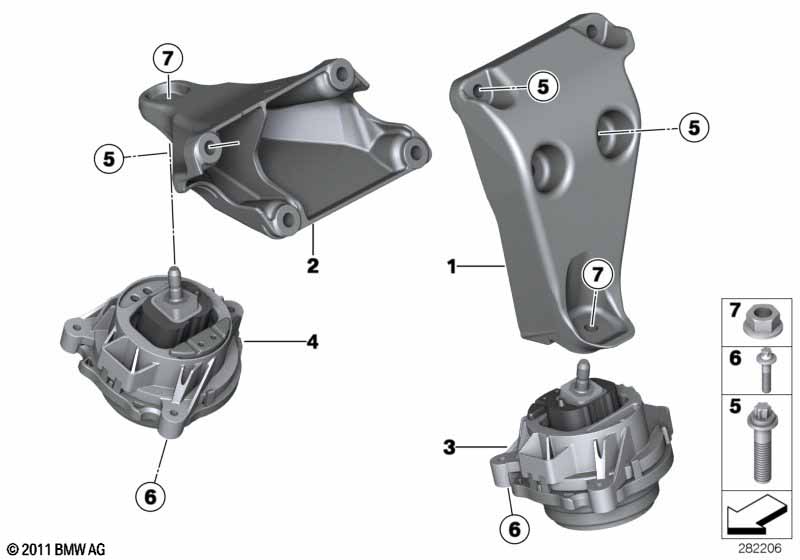

Engine Suspension
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine supporting bracket, left 1 22116788609 +core
02 Engine supporting bracket, right 1 22116788610
03 Engine mount, left 1 22116867441
04 Engine mount, right 1 22116855456
Required for repair
-- Torx bolt M8X33-8.8-ZNS3 3 31106794380
-- Flange nut M10-10-ZNS3 1 07119904670 $0.64
05 Torx screw M10X40-Z1-10.9 8 07129903976 $1.05
06 Torx bolt M8X33-8.8-ZNS3 6 31106794380
07 Flange nut M10-10-ZNS3 2 07119904670 $0.64
Notes
  • +core = plus core charge (possibility of a return of the old part)
