1' F20 M135i Engine oil cooler/oil cooler line

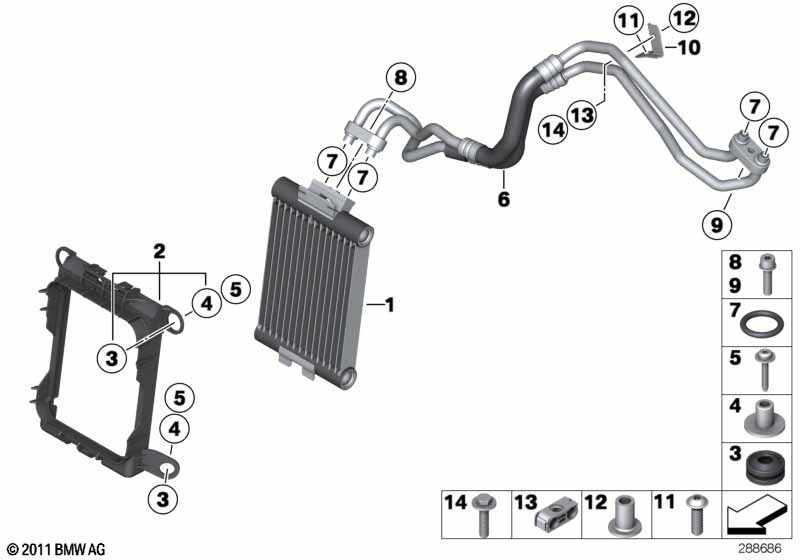

Engine oil cooler/oil cooler line
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine oil cooler 1 17217618360
02 Frame 1 06/2018 17217600698
02 Frame 1 17219452275
03 Module bushing 3 17217615868
04 Spacer sleeve 3 17217615869
05 Countersunk screw M6X35 3 07119907286
06 Engine oil cooler lines 1 17227639450
07 O-ring 13,4X1,78 4 17222245358 $1.18
07 O-ring 13,4X1,78 4 17228604345
08 Isa screw with washer M6X35-U1-8.8 1 07129907485
09 Isa screw with washer M6X65-U0 1 07129906569
10 Bracket, oil cooler line 1 17227604421
11 Screw self-tapping D6X20 ZNS3 1 17117536971 $1.12
12 Spacer sleeve 1 17227579121 $3.32
13 Pipe clip 1 17227575461 $0.42
14 Hex bolt with washer M6X30-U2-ZNS3 1 07119903994 $0.65
