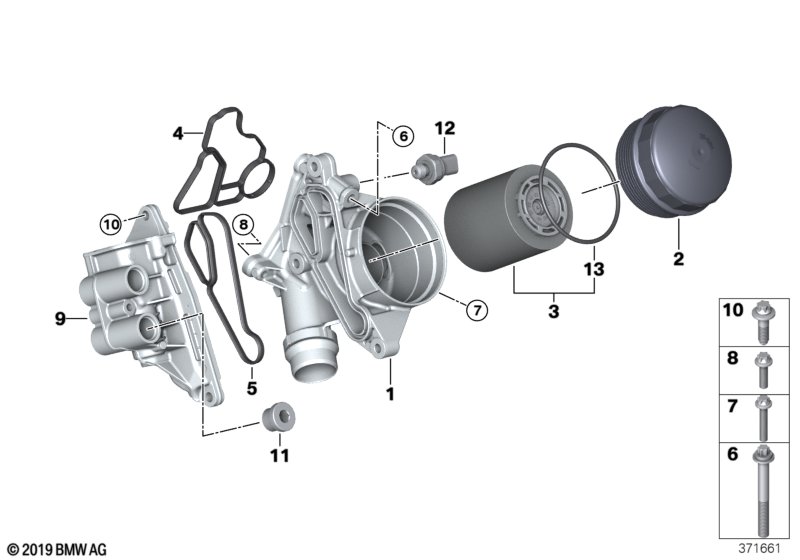

2' F87 M2 LCI M2 Lubrication system-Oil filter

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Oil filter unit, aluminum		1			11428683206
02	Oil filter cover		1			11427525334	$26.45
03	Set oil-filter element		1			11427854445
04	Gasket		1			11428637821
05	Gasket		1			11428637820
06	ASA-Bolt	M8X78	1			11427540758	$1.63
07	ASA-Bolt	M8X43	1			11427540763	$1.63
08	ASA-Bolt	M8X28	1			11427540759	$1.07
09	Thermostat housing with thermostat	116 CEL	1			11427850293
10	Torx screw	M8X25	3			11427542983	$1.05
11	Screw plug		2			11617568552	$3.85
12	Oil pressure sensor		1			12617592532
13	O-ring	80X3,5	1		10/2016	11427566133			ENDED
13	O-ring	80X3,5	1			11428683168

Notes

• ENDED = the part has been discontinued (no longer available).
