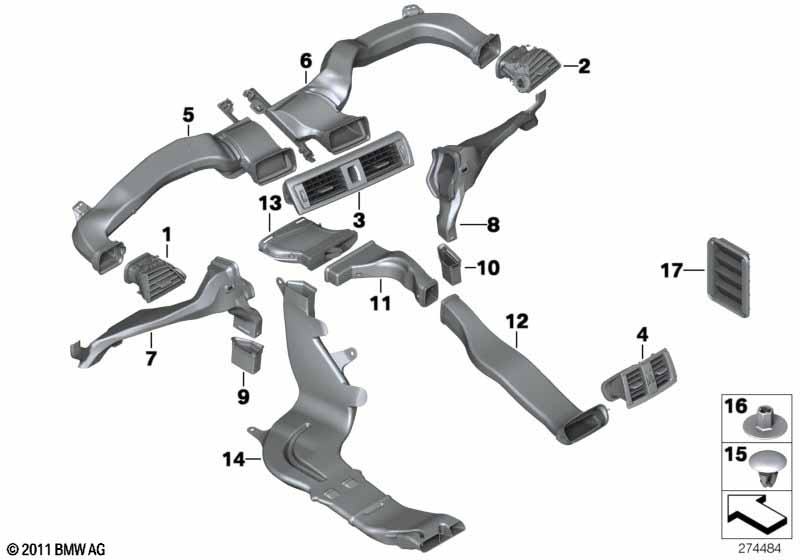

2' F23 M235i Air duct

Air duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fresh air grille, left 1 64229205355
02 Fresh air grille, right 1 64229205356
For vehicles with
Automatic air conditioning

S534A=Yes
03 Fresh air grille center 1 64229207116
03 Fresh air grille center CHROM 1 64229317945
03 Fresh air grille center 1 07/2017 64229347436
For vehicles with
Automatic air conditioning

S534A=No
03 Fresh air grille center 1 64229205357
03 Fresh air grille center CHROM 1 64229317944
03 Fresh air grille center 1 07/2017 64229347435
For vehicles with
Automatic air conditioning

S534A=Yes
04 Fresh air grille rear room 1 64229265350
05 Cold air duct left 1 64229226007
06 Cold air duct right 1 64229226008 +core
07 Left floor heater duct 1 51459205386
08 Right floor heater duct 1 51459205387
09 Heater duct rear left 1 51459205391
10 Heater duct rear right 1 51459205392
For vehicles with
Automatic air conditioning

S534A=Yes
11 Heater duct, rear, intermediate piece 1 64229207331
12 Rear heater duct 1 64229207333
13 Adapter for rear footwell duct 1 64229227810
14 Heater duct rear left 1 64227302851
14 Heater duct rear right 1 64227302852
15 Clip H=15MM 4 51481924909 $0.42
16 Clip nut 5X15 D=30 SW10 1 07147139081 $0.20
17 Rear ventilation without absorber 2 64229201647
Notes
  • +core = plus core charge (possibility of a return of the old part)
