2' F23 218i Lubrication system/Oil pump with drive

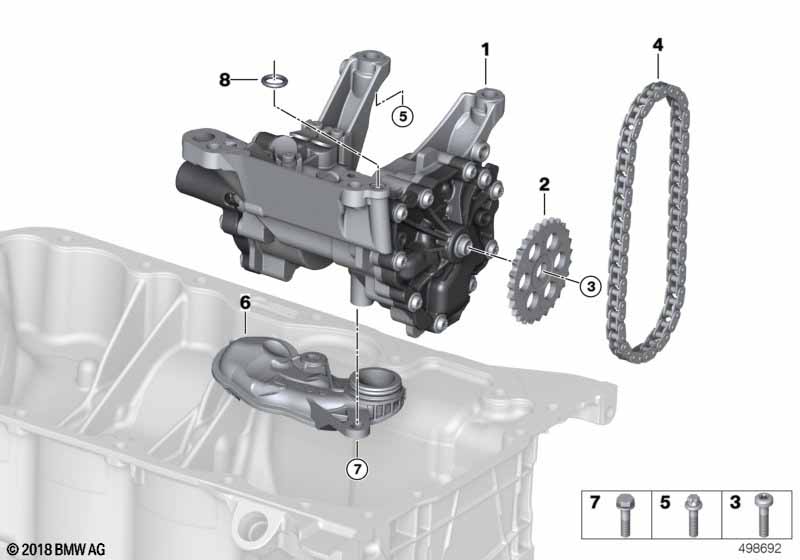

Lubrication system/Oil pump with drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil/vacuum pump assembly 1 11417624135
02 Sprocket 1 11418600425
03 ISA screw M8X35-PHR 1 11417823426 +core
04 Chain 1 11417636187
05 ASA-Bolt M8X35 4 11418612615
06 Intake pipe with gasket 1 11418513665
07 Hex bolt with washer M6X25-ZNNIV SI 2 07119905400 $0.65
08 Gasket ring ÖLPUMPE 1 11419494956
Notes
  • +core = plus core charge (possibility of a return of the old part)
