1' F21 LCI M140i Rear-axle-drive

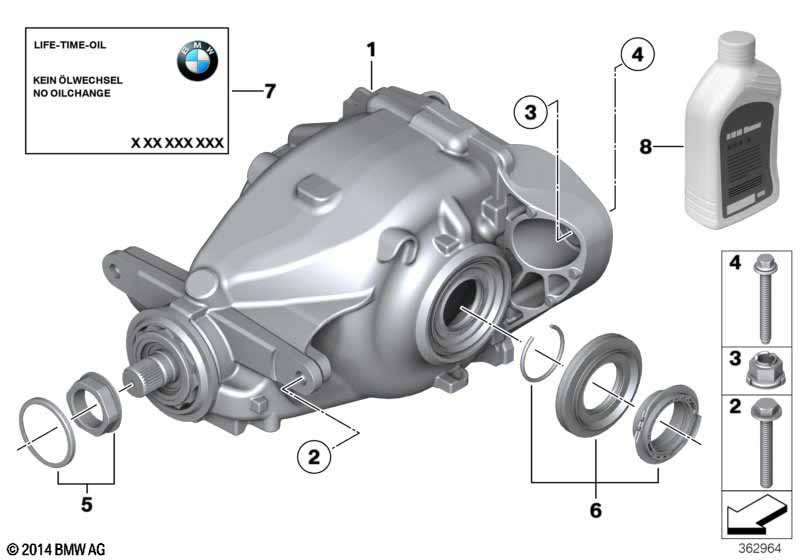

Rear-axle-drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Rear-axle-drive I=3,08 1 33107599411
only in conjunction with
-- Assembly ring 1 33137555749 $9.77
02 Hex bolt with washer M12X1,5X100 2 33176760343 $2.05
03 Self-locking collar nut M14X1,5-10 ZNS3 1 33306760349 $1.33
04 Nut M14X1,5X110 1 33176760342 $3.50
05 Repair kit insert nut M39X1,5X20 1 33127607158
Note Repair Manual
06 Shaft seal 45X75X10 AW 188 2 31507609535
only in conjunction with
-- Assembly ring 2 31537502681 $9.98
Note Repair Manual
07 Stick-on label DE, EN 1 01399791197 $4.25
08 Hypoid axle oil G1 3 X 0,5L X 83222295532
Filling quantity, see Additional
Information
