i3 I01 i3 60Ah Front Spring strut/Carrier/Wheel bearing

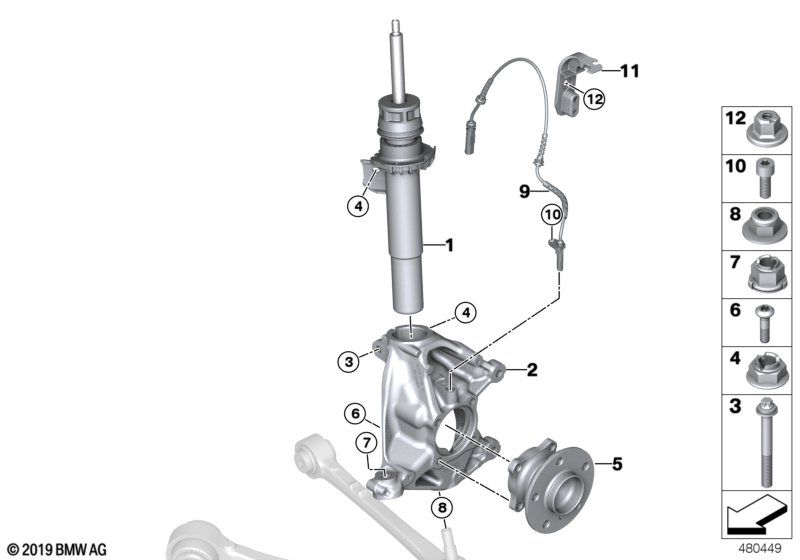

Front Spring strut/Carrier/Wheel bearing
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The following part is absolutely vital
for strut replacements:
Additional shock absorber, front
01 Left front spring strut 1 31316870357
Required for repair
01 Front right spring strut 1 31316870358
Required for repair
-- Hexagon nut with collar M12X1,5-10 ZNS3 1 33326760368
EXCHANGEABLE IN PAIRS ONLY
-- Hexagon nut with collar M10-10 ZNS3 1 33326768884 $1.39
EXCHANGEABLE IN PAIRS ONLY
-- ASA screw, self-threading 10X85 1 07129907324 ENDED
EXCHANGEABLE IN PAIRS ONLY
02 Carrier, left 1 31216852159
02 Pivot bearing, camber correction, left +30MIN 1 31216859113
02 Pivot bearing, camber correction, left -30MIN 1 31216859115
02 Carrier, right 1 31216852160
02 Swivel bearing, camber correction, right +30MIN 1 31216859114
02 Swivel bearing, camber correction, right -30MIN 1 31216859116
03 Star-socket screw M10X85-U1-10.9 2 07119909362
04 Hexagon nut with collar M10-10 ZNS3 2 33326768884 $1.39
Note Repair Manual
05 Wheel hub with bearing 2 33416867927
06 Collar screw M12X1,5X37-10.9 8 31206854639
07 Combination nut M14X1,5-10ZNNIV 2 33306787062 $1.88
08 Hex nut wiht flange M16X1,5-10 ZNNI 2 31106799668
09 DSC pulse generator, front 2 03/2015 34526794374 ENDED
09 DSC pulse generator, front 2 34526865793
For vehicles with
Driving Assistant Plus
or
Park Assistent

S5ATA=Yes

S5DPA=Yes
09 DSC pulse generator, front 2 03/2015 34526794375 ENDED
09 DSC pulse generator, front 2 34526865794
10 ISA screw M6X16-8.8-ZNS3 2 07129904588 $0.96
11 Bracket for connector box, left 1 34526851905
11 Bracket for connector box, right 1 34526851906
12 Plastic nut 2 07147336362
Notes
  • ENDED = the part has been discontinued (no longer available).
