i3 I01 i3 60Ah Front axle support/wishbone

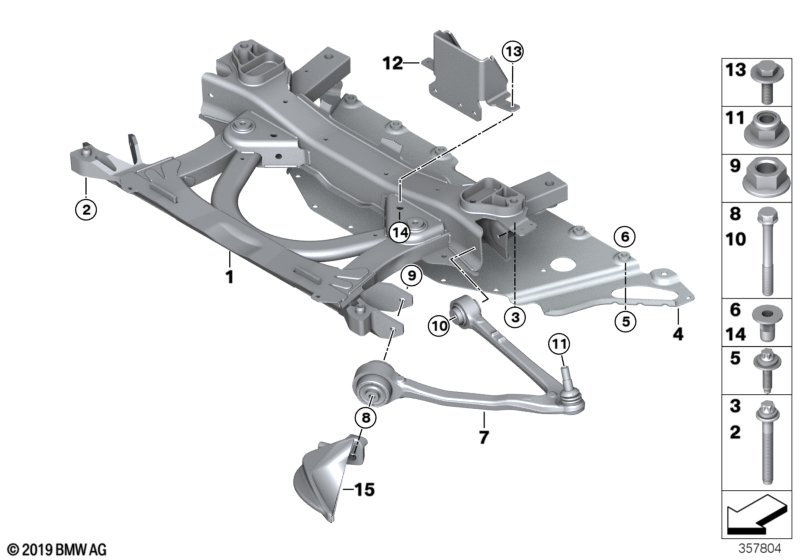

Front axle support/wishbone
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Front axle support 1 31106857710
only in conjunction with
-- Blind rivet nut, flat headed M8 8 33306858828
02 ASA screw, self-threading M12X98-10.9ZNS3 4 33306795807
03 ASA screw, self-threading M12X60-10.9ZNS3 2 33306797639
04 Structural reinforcement panel 1 31106858282
05 Torx screw with washer BM8X30-PC-ZNS3 19 07119908006
06 Blind rivet nut, flat headed M8 19 33306858828
07 Control arm with rubber bushing, left 1 31106863739
07 Control arm with rubber bushing, right 1 31106863740
08 Hex bolt with washer M12X131-10.9 2 31106861095
09 Hex nut wiht flange M12X1,5-10 ZNS3 4 31106860347
10 Hex bolt with washer M12X1,5X87 ZNS3 2 33326760346 $2.75
11 Hex nut wiht flange M16X1,5-10 ZNNI 2 31106799668
15 Crash lever, left 1 31106864661
15 Crash lever, right 1 31106864662
