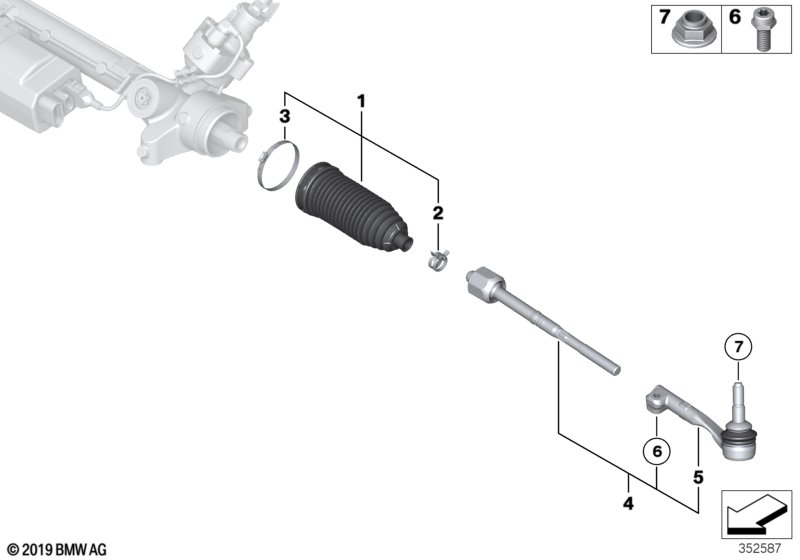

i3 I01 i3 60Ah Steering linkage/tie rods

Steering linkage/tie rods
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair kit bellows 2 04/2018 32106865380 ENDED
only in conjunction with
-- Grease FB-1 100G 2 04/2018 83232208093
01 Repair kit bellows 2 32106893700
only in conjunction with
-- Grease FB-1 100G 2 83232208093
02 Hose clamp 2 32106855447
03 Pipe clamp 2 32106855446
04 Left tie rod 1 32216851409
04 Right tie rod 1 32216851410
05 Ball joint, left 1 32106851411
Required for repair
05 Ball joint, right 1 32106851412
Required for repair
-- Combination nut M14X1,5-10ZNNIV 1 33306787062 $1.88
-- Clamping bolt M12X1X32-10.9 1 32106859022
06 Clamping bolt M12X1X32-10.9 2 32106859022
07 Combination nut M14X1,5-10ZNNIV 2 33306787062 $1.88
Notes
  • ENDED = the part has been discontinued (no longer available).
