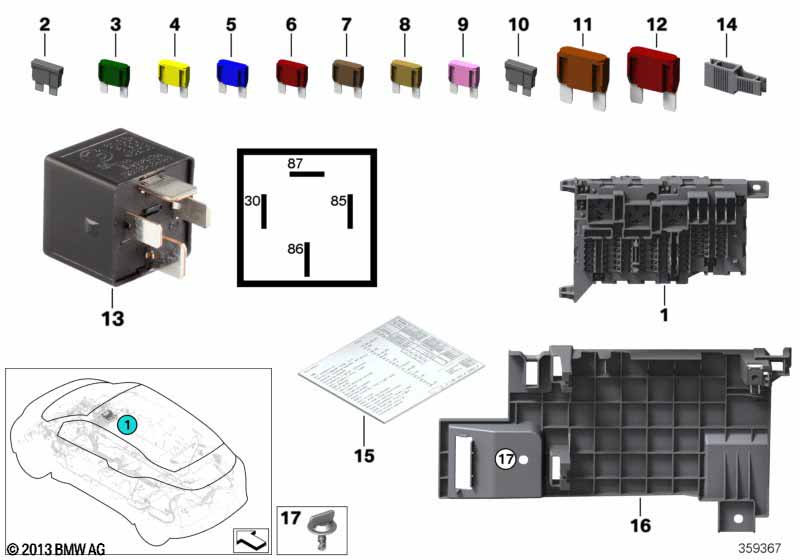

i3 I01 i3 60Ah Power distribution box

Power distribution box
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Power distribution box BASIS 1 11/2016 61149270354 ENDED
01 Power distribution box BASIS 1 61149360501
02 Fuse 10A X 07/2017 61131372525
02 Fuse 10A X 61146953466 ENDED
03 Fuse, Mini, green 30A X 61139230533
04 Fuse Mini, yellow 20A X 61136942071 $0.77
05 Fuse Mini, blue 15A X 61136917404 $0.77
06 Fuse Mini, red 10A X 61136917403 $0.77
07 Fuse Mini, brown 7,5A X 61136917402 $0.77
08 Fuse Mini, yellow-brown 5A X 61136917401 $0.77
09 Fuse Mini, rosa 4A X 61136917400 $0.77
10 Fuse 7,5A X 61131370987 $0.75
11 Fuse Maxi, orange 40A X 61138367132 $1.83
12 Fuse Maxi, red 50A X 61138367154 $2.15
13 Relay, make contact, black X 61366901469 $13.96 +core
14 Fuse clip 1 61146936578 $1.10
15 Map, fuse grouping 1 71239354839
16 Bracket current distributor LIFE 1 61139265642
17 Quick-release screw 2 61139343291
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
