i3 I01 i3 60Ah El. cont. heater / coolant pump

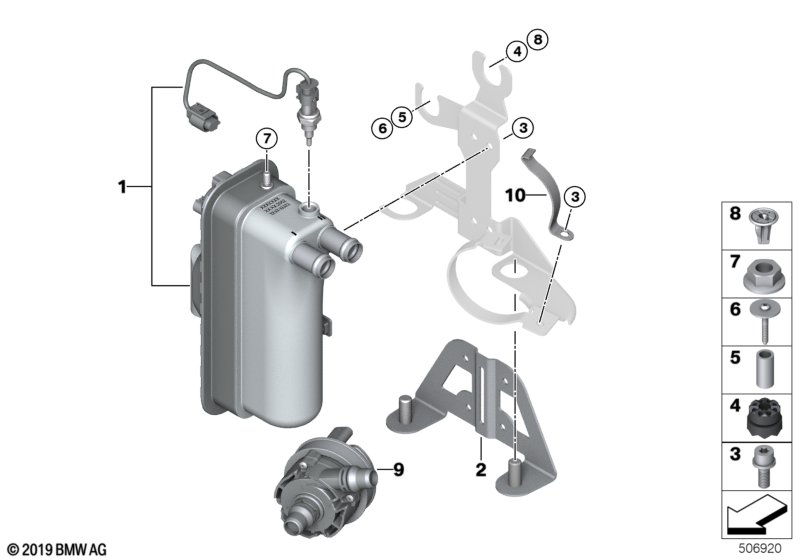

El. cont. heater / coolant pump
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Flow heater electr. 1 03/2017 64219363105 ENDED
01 Flow heater electr. 1 11/2018 64126827186
01 Flow heater electr. 1 11/2018 64129490556
01 Flow heater electr. 1 11/2019 64129893003
02 Temperature sensor coolant / oil 1 13627580635
03 Bracket for electric circulation heater 1 64219291283
04 Rubber Mounting 4 32416772178 $2.93
05 Spacer sleeve ZNS3 2 07146977328 $1.21
06 Combi oval-head machine screw TS5X35 2 07149285273
07 Hex nut M6-8-ZNNIV SI 1 07119905544 $0.64
08 Plug-in nut 9X9 MM 2 07149295514
09 Electric water pump 1 03/2019 64119147359
09 Electric water pump 1 64116834917
10 Rapid electric water pump 1 64219302459
11 Torx-bolt with washer M6X16-8.8-ZNNIV 1 07129904819 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
