i3 I01 i3 60Ah Rex Crankcase lower part

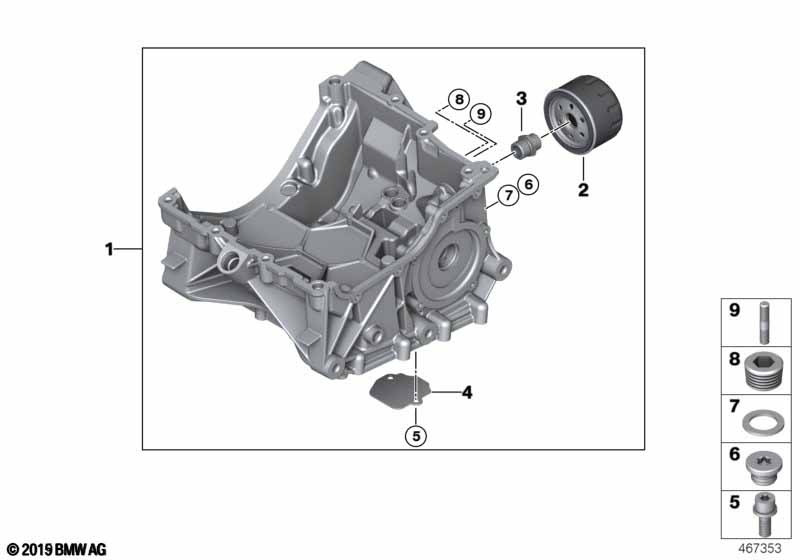

Crankcase lower part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Engine block, lower 1 11118528881
Required for repair
-- Primer Loctite 171000 4ML 1 83197515683 $11.90
02 Oil filter 1 11427673541 $20.23
03 Threaded pipe joint 1 11428524836
04 Covering plate 1 11138528886
05 Torx-bolt with washer M6X16-8.8-ZNNIV 2 07129904819 $0.38
06 Screw plug 1 07119908550
07 Gasket ring A16X20-AL 1 07119963252 $0.57
08 Screw plug M12X1.5X10 4 11217729500
09 Stud bolt M6X30-8.8-ZNS3 1 07129903884 $2.60
