i3 I01 i3 60Ah Rex Exterior trim / grill

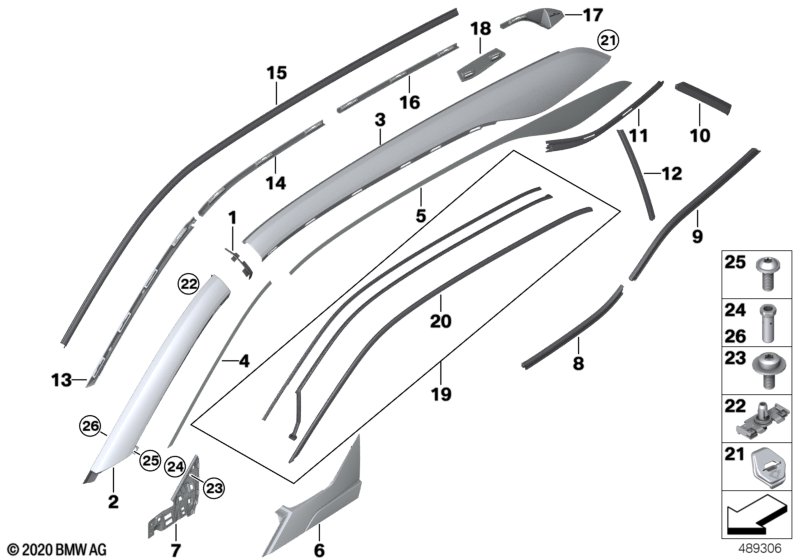

Exterior trim / grill
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Joint seal, roof, front left 1 51127317277
01 Joint seal, roof, front right 1 51127317278
02 Left column A cover 1 51447369625
02 Right column A cover 1 51447369626
03 Trim cover, roof frame, left 1 51447369835
03 Trim cover, roof frame, right 1 51447369836
06 Left column A cover 1 51137453547
06 Right column A cover 1 51137453548
07 Support, cover, A-pillar, left 1 51137314019
07 Support, cover, A-pillar, right 1 51137314020 ENDED
08 Outer weatherstrip, rear left door 2 51357277047
08 Window well strip, outer, door, rear rgt 2 51357277048
09 Window channel strip, rear left 2 51357277055
09 Window channel strip, rear right 2 51357277056
10 Cover, column D, left 1 51137301743 ENDED
10 Cover, column D, right 1 51137301744 ENDED
11 Door weatherstrip rear left 1 51447317491
11 Door weatherstrip rear right 1 51447317492
12 Trim cover, C-pillar, rear left 1 51377453545
12 Trim panel, C-pillar, rear right 1 51377453546
13 Retaining strip, A-pillar, left 1 51447296783
13 Retaining strip, A-pillar, right 1 51447296784
14 Retaining strip, B-pillar, left 1 51447305129
14 Retaining strip, B-pillar, right 1 51447305130
15 Seal, roof 2 51447305025
16 Retaining strip, C-pillar, left 1 51447305131
16 Retaining strip, C-pillar, right 1 51447305132
For vehicles with
Glass roof, electrical

S403A=No
17 Retaining strip, D-pillar, left 1 51447305133
17 Retaining strip, D-pillar, right 1 51447305134
For vehicles with
Glass roof, electrical

S403A=Yes
17 Retaining strip, D-pillar, left 1 51447424787
17 Retaining strip, D-pillar, right 1 51447424788
18 Retaining rail, outer left 1 51447296787
18 Retaining rail, outer right 1 51447296788
19 Roofledge left 1 51767314003
19 Roofledge right 1 51767314004
20 Piping, roof frame strip, left 1 51337288981
20 Piping, roof frame strip, right 1 51767288982
21 Fixing clamp left 1 51447385983
21 Fixing clamp right 1 51447385984
22 Clip, roof frame strip 16 51337310542
23 Countersunk screw M5X12-U2-A2-70 6 07119905016 $2.56
24 Blind rivet nut with collar M5 4 07147334861
25 Fillister head screw 2 51449908580
26 Blind rivet nut, flat headed M6 2 07147352052
Notes
  • ENDED = the part has been discontinued (no longer available).
