1502-2002tii 2002 Engine hood/mounting parts

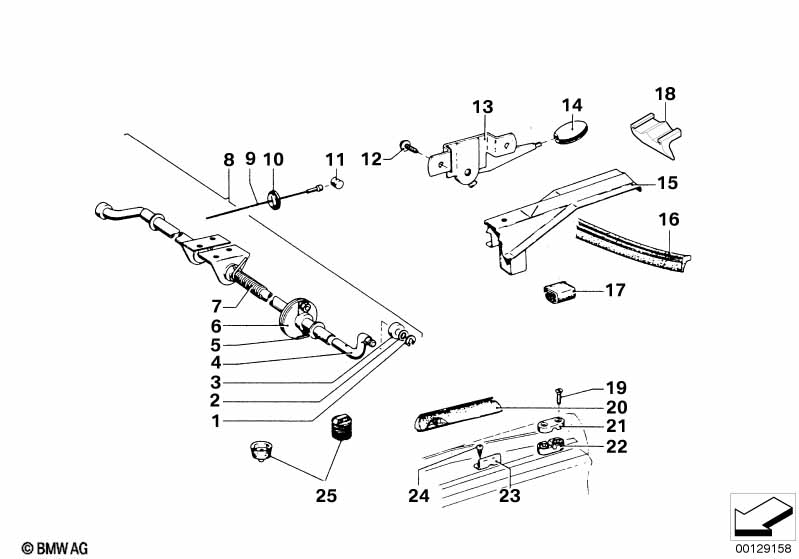

Engine hood/mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Circlip 6,0 2 07/1977 07119932842 $0.09 ENDED
01 Circlip 6,0-ZNS3 2 07119905695 $1.07
02 Shim 1,500MM 2 23311230689 $0.36 ENDED
03 Roll pin 2 51235480138 $3.05
04 Bow 2 51235480134 ENDED
05 Clamping bush 4 X 16 2 07119941365 ENDED
06 Cable roller 1 51231813490 ENDED
07 Retainer spring 1 41615480169 $8.15 ENDED
07 Retainer spring 1 51231801010 ENDED
08 Hood lock 1 51235480136 ENDED
09 Bowden cable 1 51235480164 $15.13
10 Grommet 1 51715480172 ENDED
11 NIpple 1 07119988505 $1.73
fitted alternatively
12 Hex head screw with washer A6,5X19 2 51231806882 $0.77
12 Hex bolt M6X25 2 52101820255 $0.35 ENDED
13 Lever 1 51231801019 ENDED
14 Button 1 41335680162 $14.81
15 Cup 1 41615480167 ENDED
16 Gasket 1 51235480192 $33.70
17 Stopper 1 41615480193 $7.53 ENDED
18 sealing 1 51235480191 $40.02
19 Csk.fillister head srew M6X35 4 07119928533 $1.79
20 Sealing front 1 41615480195 $41.17
20 SEALING FRONT right 1 41615480196 $41.17
21 Guide 2 41615480156 $12.76 ENDED
22 Guide 2 41615480155 $12.76 ENDED
23 Support 2 41615480170 $11.59
24 Set fillister head screw 20 M6X16 4 07509063320 ENDED
24 Fillister head screw M6X16 4 07119906423 $0.18
25 Stop buffer 2 51231852347 $2.79
Notes
  • ENDED = the part has been discontinued (no longer available).
