3' E21 318 Door window lifting mechanism front

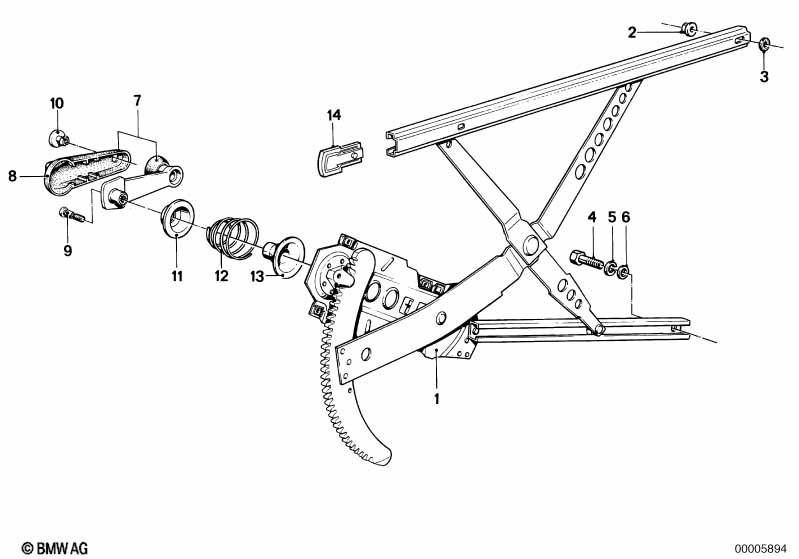

Door window lifting mechanism front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Window lifter front left 1 51321867901 $78.38
01 Window lifter front right 1 51321867902 $78.38
02 Locknut M6 ZN 4 61611356101 $0.40 ENDED
02 Self-locking hex nut M6 4 51417053138 $0.38
03 Rubber washer 4 51185480151 $0.57
04 Hex bolt M6X12 X 07119913442 $0.25 ENDED
04 Hex bolt M6X12-8.8-ZNNIV X 07119905524 $0.27
05 Spring washer B6 X 07119933082 $0.09
06 Washer 6,4 X 12/1983 07119936425 $0.09 ENDED
06 Washer A6,4-200HV-ZNS3 X 07119903791 $0.11
07 Window crank SCHWARZ 2 51321846232 $70.29 ENDED
08 Cover 2 51321846234 $0.79
09 Conical screw 2 51211800790 $0.67
10 Cap 2 51321846236 $0.55 ENDED
11 Stop disk SCHWARZ 2 51321819852 $6.12
12 Conical spring 2 02/1981 51321870460 $1.19
14 Sliding piece 2 51321871969 $1.75
Notes
  • ENDED = the part has been discontinued (no longer available).
