2' F23 220d Lubrication system/Oil pump with drive

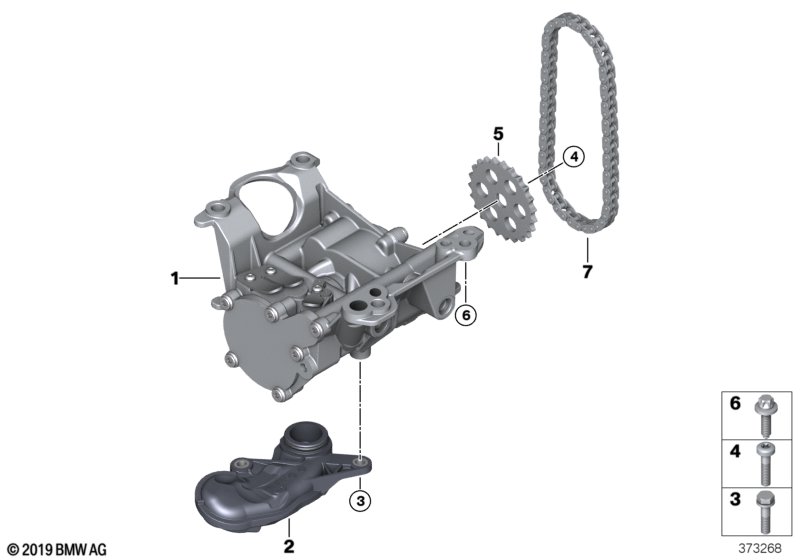

Lubrication system/Oil pump with drive
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil/vacuum pump assembly 1 11418513756
02 Intake pipe with gasket 1 11418513665
03 Hex bolt with washer M6X25-ZNNIV SI 2 07119905400 $0.65
04 ISA screw M8X35-PHR 1 11417823426 +core
05 Oil pump sprocket Z=23 1 11417812449
06 ASA-Bolt M8X35 4 11418612615
07 Chain 1 11417797896
Notes
  • +core = plus core charge (possibility of a return of the old part)
