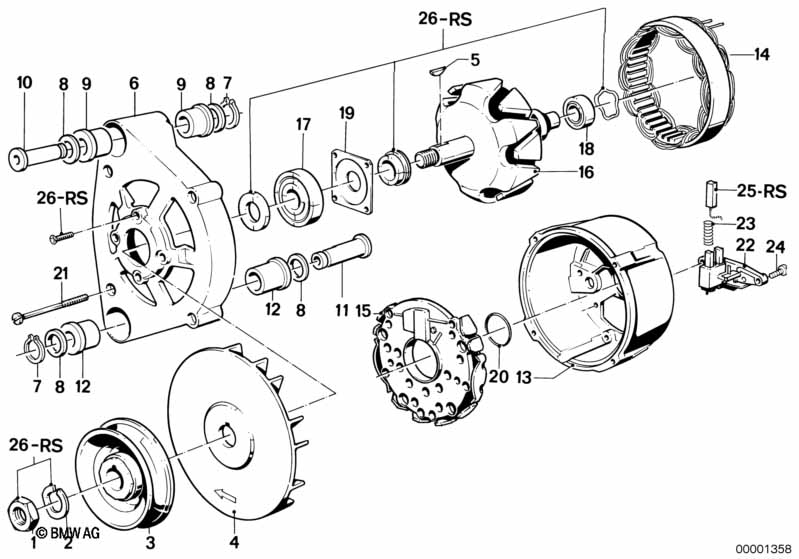

3' E21 320 Alternator, individual parts

Alternator, individual parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
18 Grooved ball bearing 32X12X10 1 12311739203 $21.20
19 Supporting plate 1 12311459279 $1.12
21 Fillister-head screw 4 12311356061 ENDED
22 Voltage regulator BOSCH 1 12311286073 $63.58 ENDED
23 Compression spring 1 12311268412 $0.35
24 Fillister-head screw 2 12311747251 $0.58
25 Carbon brush set 1 12311354681 $4.08 ENDED
26 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
