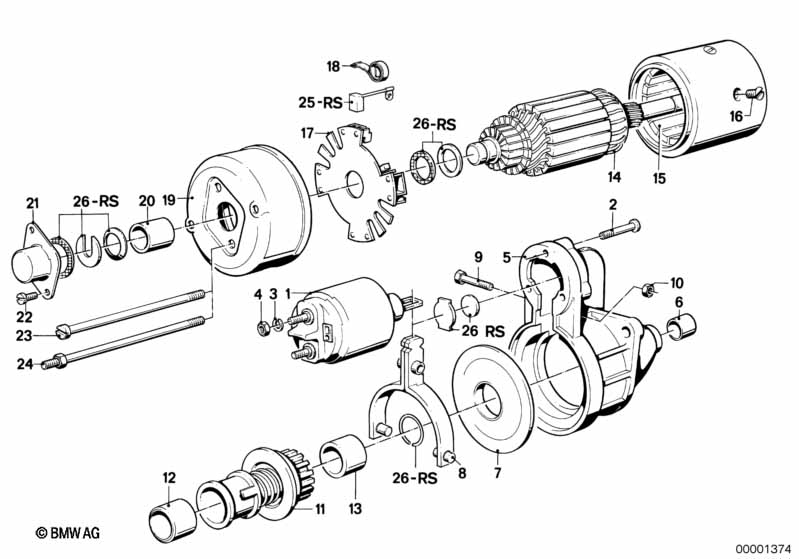

3' E21 320 Starter parts

Starter parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ Nr. 0 001 311 045 = BMW 12 41 1 355
693
01 Solenoid switch 1 12411357118 ENDED
02 Countersunk head screw 2 12418620158 $0.77 ENDED
03 Spring washer B8 1 07119933096 $0.18
04 Hex nut BM8 1 07119921077 $0.13 ENDED
05 Housing assy front 1 12418620108 $99.88 ENDED
08 Shift lever 1 12418720009 $16.52 ENDED
09 Fillister-head screw 1 12411352529 $1.93
10 Hex nut M6 1 08/1996 23112322368 $0.38 ENDED
11 Starter pinion 1 12411350796 $66.12
12 Bushing 1 11511722914 $5.19 ENDED
13 Ring 1 12411722915 $3.63
14 Armature 1 12418720012 $202.00 ENDED
16 Countersunk head screw 4 12411354571 ENDED
17 Brush holder plate 1 12411274607 $19.96
18 Compression spring 4 12418620143 $1.04 ENDED
19 Collector guiding 1 12418620135 $96.26 ENDED
20 Bushing 1 12411722916 $3.85
21 Covering cap 1 12411289491 $1.32 ENDED
22 Fillister head screw M4X6 2 07119907657 $0.13
24 Screw 2 12411357117 ENDED
25 Carbon brush set 1 12411357116 $8.16
26 Repair kit starter motor 1 12411352289 $10.83
Notes
  • ENDED = the part has been discontinued (no longer available).
