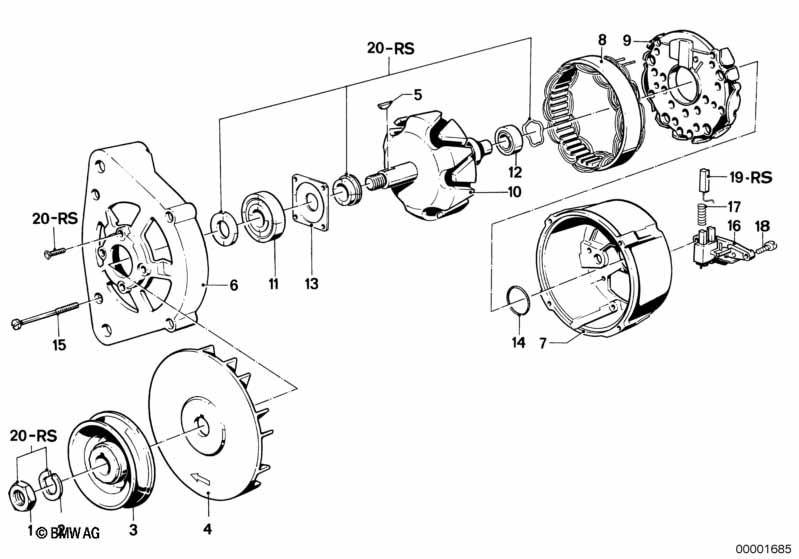

3' E21 320 Alternator, individual parts

Alternator, individual parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR BOSCH
Typ Nr.0 120 489 039 = BMW 12 31 1 277
223
only applies to
-- Alternator 55A X 12311277223 $475.32 ENDED
01 Hex nut M14X1,5 1 07119901309 $1.65
02 Spring washer B14 1 07119933148 $0.20
03 Pulley D=61MM 1 12311273141 $19.60
04 Fan wheel 1 12311350199 $14.54
05 Woodruff key 4X5 1 07119951453 $0.36
06 Housing assy front 1 12311356057 $80.07 ENDED
07 Housing assy rear 1 12311279596 ENDED
08 Stator assy 1 12311279594 ENDED
09 Diode assy 1 12311279597 $131.70 ENDED
10 Rotor 1 12311279593 ENDED
11 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
12 Grooved ball bearing 32X12X10 1 12311739203 $21.20
13 Supporting plate 1 12311459279 $1.12
14 O-ring 1 12311279541 $0.73 ENDED
15 Fillister-head screw 3 12311354683 ENDED
15 Fillister-head screw 1 12311358012 ENDED
16 Voltage regulator 1 12311726022 $124.68
18 Fillister-head screw 2 12311747251 $0.58
19 Carbon brush set 1 12311727756 $18.07
20 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
