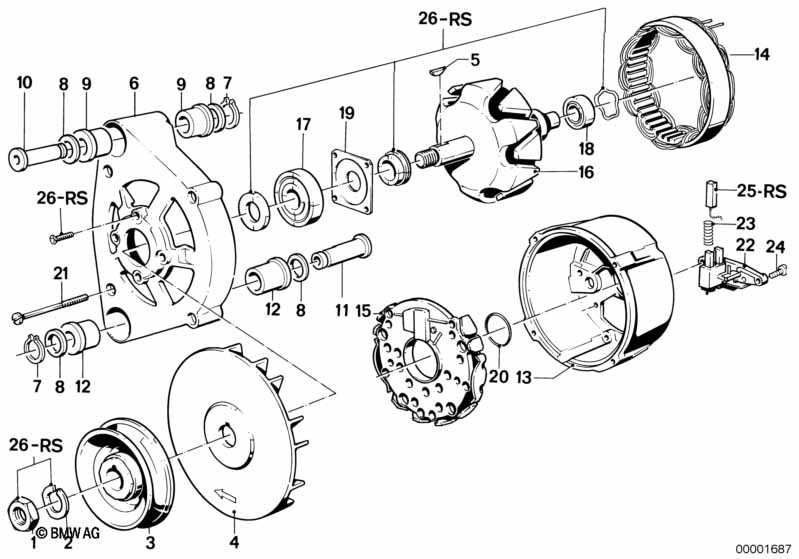

3' E21 320 Alternator, individual parts

Alternator, individual parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i ONLY APPLIES TO ALTERNATOR BOSCH
Typ Nr. 0 120 489 039 = BMW 12 31 1 277
223
Typ Nr. 0 120 489 648 = BMW 12 31 1 364
402
only applies to
-- Alternator 55A X 12311277223 $475.32 ENDED
-- Alternator 55A X 12311364402 ENDED
01 Hex nut M14X1,5 1 07119901309 $1.65
02 Spring washer B14 1 07119933148 $0.20
03 Pulley 1 12311361611 $19.60
04 Fan wheel 1 12311350199 $14.54
05 Woodruff key 4X5 1 07119951453 $0.36
06 Housing assy front 1 12311356057 $80.07 ENDED
07 Lock Ring 2 12311268418 $2.90
08 Washer 4 12311268420 $7.16
09 Bush 75 SHORE KURZ 2 12311268435 $7.06
09 Bush 90 SHORE KURZ 2 12311268449 $12.29
09 Bush 2 12311705694 $5.35
10 Spacer bush 1 12311268434 $12.37
11 Spacer bush 1 12311268436 $13.89
12 Bush 75 SHORE LANG 2 12311268433 $6.25
12 Bush 90 SHORE LANG 2 12311268447 $10.41
13 Housing assy rear 1 12311266722 ENDED
14 Stator assy 1 12311354676 ENDED
15 Diode assy 1 12311354682 $75.61 ENDED
16 Rotor 1 12311266721 ENDED
17 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
18 Grooved ball bearing 32X12X10 1 12311739203 $21.20
19 Supporting plate 1 12311459279 $1.12
21 Fillister-head screw 3 12311354683 ENDED
21 Fillister-head screw 1 12311358012 ENDED
22 Voltage regulator BOSCH 1 12311286073 $63.58 ENDED
23 Compression spring 2 12311268412 $0.35
24 Fillister-head screw 2 12311747251 $0.58
25 Carbon brush set 1 12311354681 $4.08 ENDED
26 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
