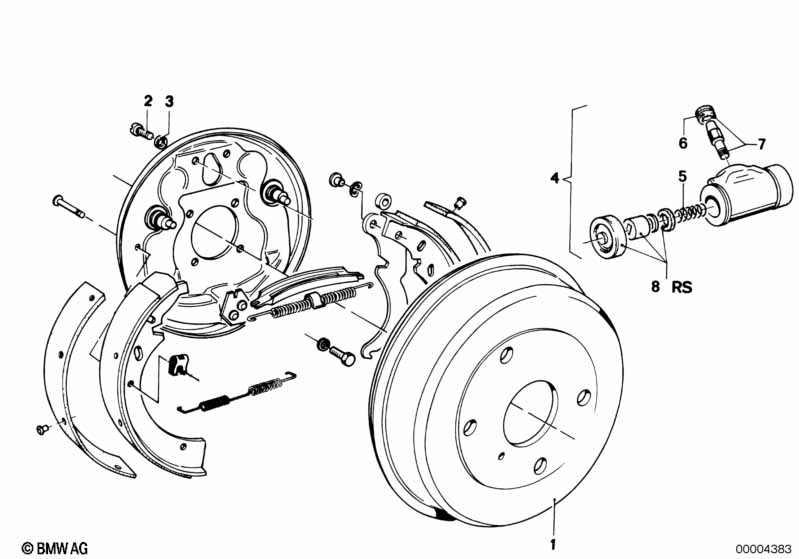

3' E21 320 Drum brake-brake drum/wheel brake cyl.

Drum brake-brake drum/wheel brake cyl.
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake drum D=250MM 2 08/1988 34211158712 $98.21 ENDED
01 Brake drum D=250 2 34216752373 $108.83
02 Hex bolt M6X12 4 07119913442 $0.25 ENDED
02 Hex bolt M6X12-8.8-ZNNIV 4 07119905524 $0.27
03 Spring washer B6 4 07119933082 $0.09
04 Wheel brake cylinder D=19,05MM 2 34211117104 $129.75
05 Compression spring 2 34212061731 $1.22 ENDED
06 Dust cap 2 34111153198 $6.15
07 Ventilation valve 2 34219023168 $8.13
08 Gasket set brake cylinder 2 34211117344 $87.11 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
