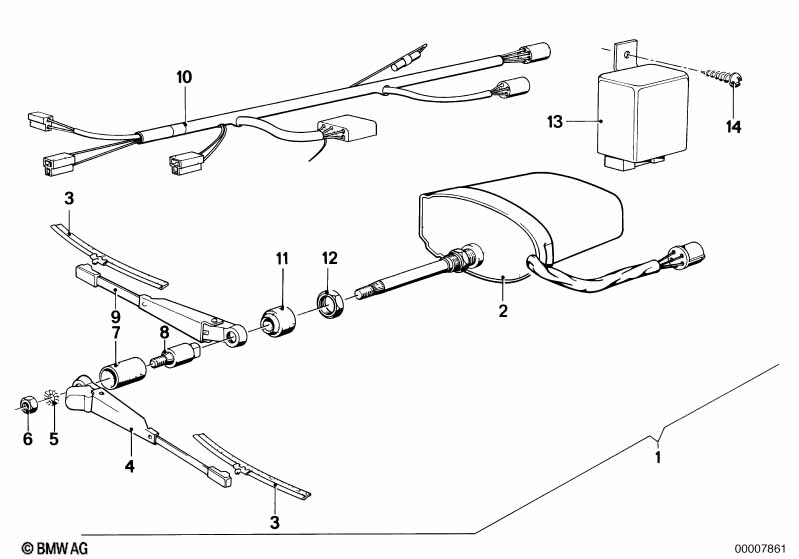

3' E21 320 Retrofit kit, headlight cleaning system

Retrofit kit, headlight cleaning system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Retrofit kit, headlight cleaning system 1 02/1981 61601361698 ENDED, EBA 9760037
02 Wiper motor left 1 02/1981 61631360821 ENDED
02 Wiper motor right 1 02/1981 61631360822 ENDED
03 Wiper blade 4 02/1981 61631356734 $27.34
04 Wiper arm outer 2 02/1981 61631361068 $28.18 ENDED
05 Spring washer B6 4 02/1981 07119933082 $0.09
06 Hex nut M6-04-2-ZN 2 02/1981 07119921054 $0.11
07 Insulation sleeve X 02/1981 61638445100 $0.45
08 Spacer sleeve 2 02/1981 61631360828 $9.93 ENDED
09 Wiper arm outer 2 02/1981 61631361069 ENDED
10 Cable set, headlight cleaning system 1 02/1981 61121360991 ENDED
11 Cap 2 02/1981 61631361993 $2.71 ENDED
12 Hex nut 2 02/1981 61631361348 $0.45 ENDED
13 Wiper-wash-interval control unit 1 02/1981 61311358491 $161.95 ENDED
14 Fillister head self-tapping screw ST4,8X13 1 02/1981 07119907786 $0.11
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
