3' E21 320 Safety belt rear

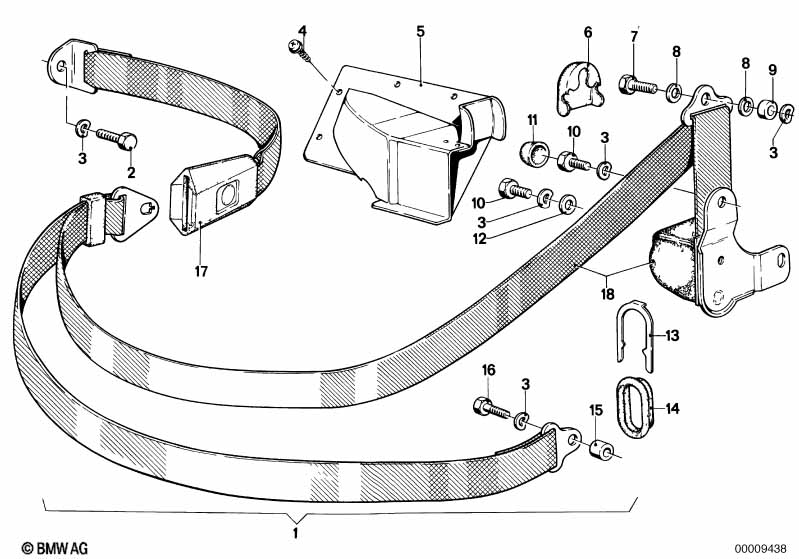

Safety belt rear
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Safety belt rear left 1 08/1976 72111841267 ENDED
01 Safety belt rear right GRAENGES-ESSEM 1 08/1976 72111850196 ENDED
02 Collar screw 7/16"X25 2 08/1976 72111814956 $1.17
03 Wave washer 11,2 / 19 X 08/1976 72111808672 $0.17
04 Hex head screw ST4,8X16-ZNS 4 08/1976 07119901294 $0.25 ENDED
04 Hex head screw ST4,8X16-ZNS3 4 08/1976 07119901299 $0.25
05 Covering left 1 04/1976 51467770033 ENDED
05 Covering right 1 04/1976 51467770034 ENDED
05 Covering left 1 04/1976 08/1976 51461836237 ENDED
05 Covering right 1 04/1976 08/1976 51461836238 ENDED
06 Covering cap GRAENGES 2 08/1976 72111837677 $3.12 ENDED
only applies to
06 Covering cap SCHWARZ 2 08/1976 72111828567 $3.11
07 Screw 2 08/1976 72111845045 $1.43 ENDED
08 Stop disk 4 08/1976 72111845046 $0.22
09 Spacer bush GRAENGES 4 08/1976 72111815729 $0.57
only applies to
09 Washer 2 08/1976 72111840586 $0.45
10 Collar screw 7/16"X22 4 08/1976 72111822963 $5.93 ENDED
11 Covering cap ANTHRAZIT 2 08/1976 72111808464 $0.63 ENDED
12 Washer 2 08/1976 72111808673 $0.37
only applies to
13 Clamping 2 08/1976 72111831504 ENDED
14 Cover 2 08/1976 72111831503 ENDED
15 Spacer bush 2 08/1976 72111831506 $2.38
16 Screw GRAENGES 2 08/1976 72111836605 ENDED
only applies to
16 Screw 2 08/1976 72111814958 $1.03 ENDED
17 Lower strap, rear REPA 2 08/1976 72111849656 ENDED
17 Lower strap, rear GRAENGES-ESSEM 2 08/1976 72111849657 ENDED
For vehicles with
National version Australia

L810A=Yes
17 Lower strap, rear REPA 2 08/1976 72111849706 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
