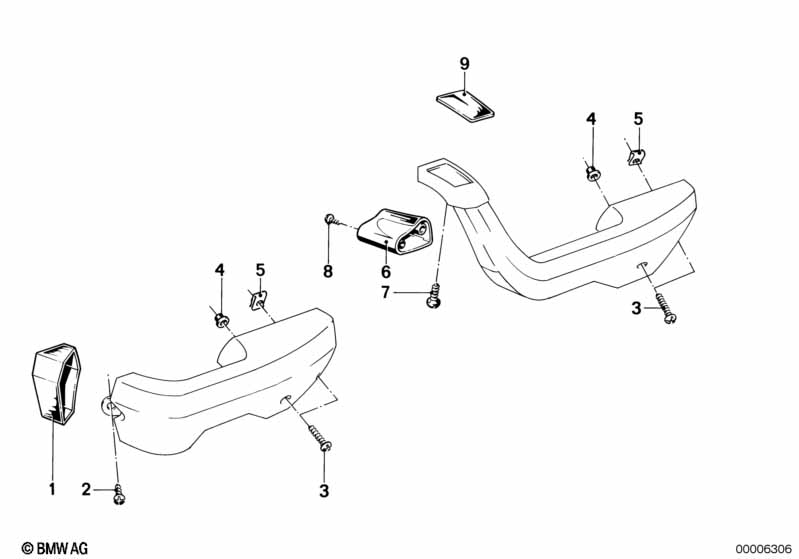

3' E21 320 Armrest-single parts

Armrest-single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cap right 1 51411843082 $11.72 ENDED
02 Fillister head self-tapping screw ST4,8X16 Z2 1 07119907789 $0.13
03 Fillister head self-tapping screw ST4,8X32 4 12/1983 07119906770 $0.36 ENDED
03 Sheet metal screw ST4,8X38-R-ZNFE 4 07119905199 $0.36
04 Expanding nut 4 51411801262 $0.37
05 Body nut ST4,8-3 2 05/1999 07129925713 ENDED
05 Body nut ST4,8-3 2 07129901649 $0.15 ENDED
05 Body nut ST4,8-13-ZNS3 2 07129904223 $0.11
06 Intermediate piece, left 1 51411842481 $24.27 ENDED
07 Csk.lenshead screw ST3,9X19 1 07119902243 $1.67
08 Fillister head self-tapping screw ST4,2X13 2 07119906748 $0.18
09 Cover 1 09/1980 51411817609 $8.88
Notes
  • ENDED = the part has been discontinued (no longer available).
