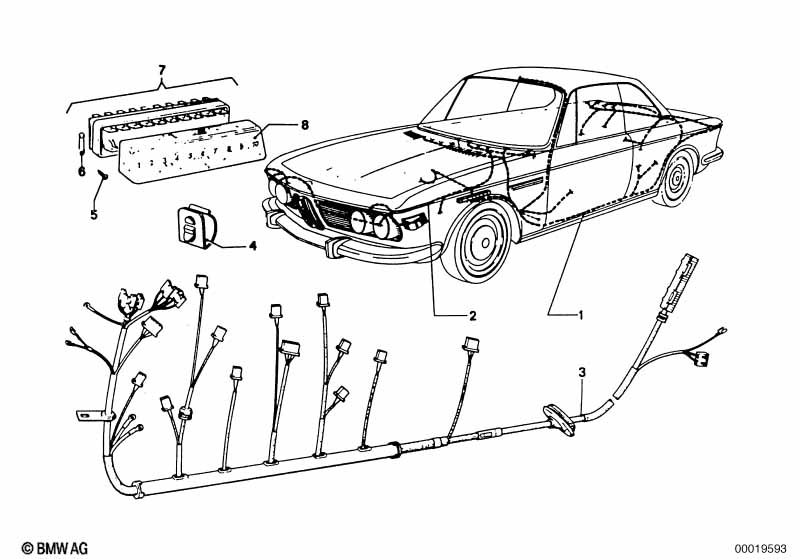

2.5CS-3.0CSL 2800CS Cable harness

Cable harness
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cable harness sector rear 1 12/1968 11/1975 61111354315 $870.48 ENDED
02 Wiring harness, front section 1 08/1969 03/1971 61111352285 ENDED
02 Wiring harness, front section 1 08/1969 03/1971 61111353283 ENDED
02 Wiring harness, front section 1 08/1969 12/1974 61111355995 ENDED
04 Cable clamp D=12MM 6 61131355345 $0.82 ENDED
05 Fillister head self-tapping screw ST4,8X13 2 07119907786 $0.11
06 Fuse 8A 2 61138760138 $1.83
06 Fuse 25A 2 61138760139 $1.83 ENDED
06 Fuse 16A 3 61138760140 $1.83
06 Fuse 5A 4 61138760141 $0.14
07 Fuse box 1 12/1968 11/1975 61131357578 $21.65 ENDED
08 Cover 1 61131350837 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
