5' E12 528i Cylinder head cover

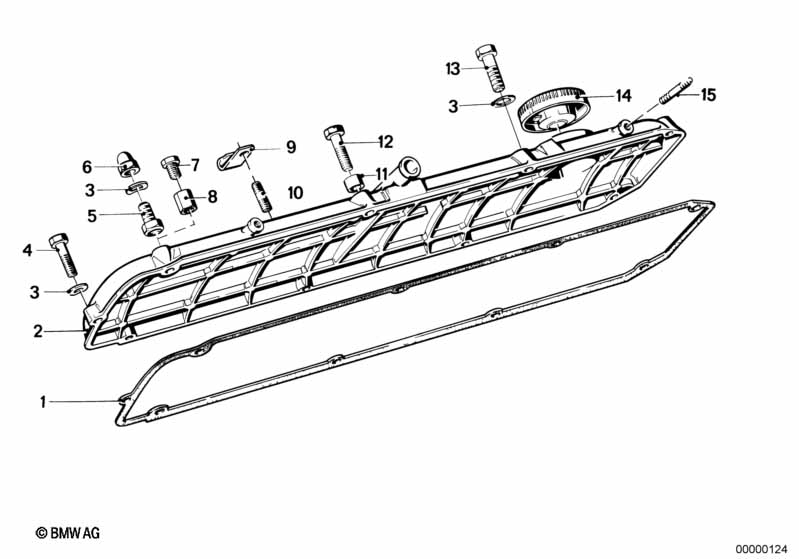

Cylinder head cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Gasket Asbestos Free 1 11121730935 $29.92 ENDED
01 Gasket Asbestos Free 1 11121730936
02 Cylinder head cover 1 11121276593 $188.46
03 Wave washer B6 9 07119932099 $0.38
03 Wave washer B6-ZNS3 9 07119904496 $1.78 ENDED
04 Hex bolt M6X30 1 07119913575 $0.20 ENDED
04 Hex bolt M6X30-8.8-ZNS3 1 07119904116 $0.38
05 Extension 2 13651353339 $3.28
only in conjunction with
-- Hex bolt M6X8 2 07119913420 $0.13
06 Cap nut M6-Z1 8 11121720113 $2.48 ENDED
06 Cap nut M6 8 11617549043 $3.23
07 Hex bolt M6X8 2 07119913420 $0.13
08 Hex nut M6 2 13651270329 ENDED
09 Clamp 1 11530623124 $0.21 ENDED
10 Stud bolt M6X25-ZN 2 07129908100 $0.20
11 Spacer bush 2 61111363376 $2.00
12 Hexagon screw with flange M6X55 2 07119903174 $0.74 ENDED
12 Hexagon screw with flange M6X55 2 07119912342 $0.55 ENDED
13 Hex bolt M6X40 6 07119912310 $0.43
14 Cap for oil filler 1 11121716993 $5.36
Notes
  • ENDED = the part has been discontinued (no longer available).
