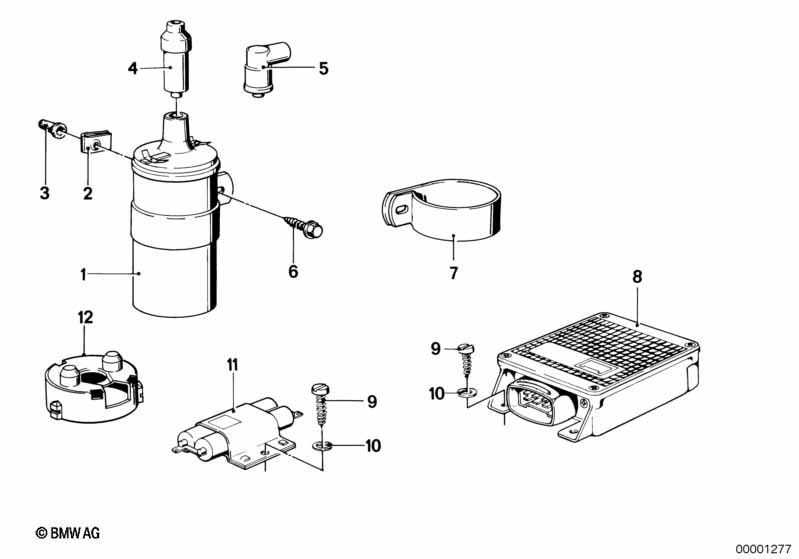

5' E12 528i Ignition coil

Ignition coil
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Ignition coil 1 12131363629 $111.73
02 Body nut ST6,3-1-ZN 1 07/1981 07129925742 $0.25 ENDED
02 Body nut ST6,3-1 1 07/1981 07129901663 $0.20 ENDED
02 Body nut ST6,3-1-ZNS3 1 07129904231
03 Protective plug 1 17114670114 $0.26
04 Suppressing socket 1000-OHM 1 07/1981 12121289833 $10.33 ENDED
04 Suppressing socket 1 12121289836 ENDED
06 Hex head screw ST6,3X25-C-Z2 1 07119916973 $0.58 ENDED
07 Clamp 1 09/1979 12131358763 $1.83 ENDED
07 Clamp 1 09/1979 12131358763 $1.83 ENDED
08 Exch.control unit transistor.ignition 1 12141267459 $830.04 ENDED
08 AT-Control unit 1 12141466072 $1150.00
09 Fillister head self-tapping screw ST4,8X16 Z2 4 07119907789 $0.13
10 Wave washer B5 4 07/1981 07119932047 $0.09 ENDED
10 Wave washer B5 4 07119932098 $0.38
11 Resistor 0,4/0,6 OHM 1 12141360676 $59.79 ENDED
11 Resistor 0,5/0,5 OHM 1 12140442036 $59.79 ENDED
12 Covering cap 1 12121273299 $17.17
Notes
  • ENDED = the part has been discontinued (no longer available).
