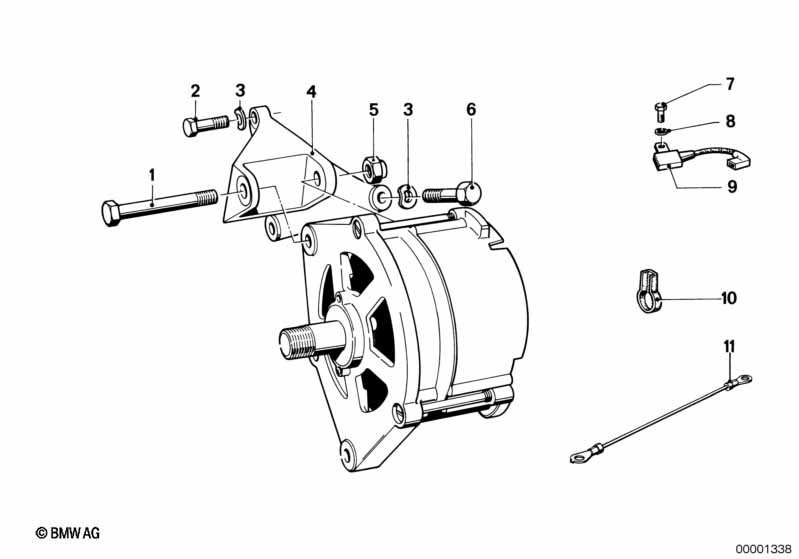

5' E12 528i Alternatormounting parts

Alternatormounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex bolt M8X80 1 07119912558 $2.89
02 Hex bolt M8X35 2 07119913676 $0.36
03 Wave washer B8 3 07/1981 07119932095 $0.09 ENDED
03 Wave washer 3 07119904115 $0.09
04 Supporting bracket 1 12311261120 $100.47
05 Self-locking hex nut M8 1 07/1981 07129946400 $0.35 ENDED
05 Self-locking hex nut M8-8-ZNNIV SI 1 07129905767 $0.27 ENDED
05 Self-locking hex nut M8-8-ZNNI SI 1 07129906196 $1.60
06 Hex bolt M8X30-ZN 1 07119913662 $0.22
06 Hex bolt M8X30 1 07119913664 $0.47
07 Hex bolt M5X8 1 07119913212 $0.25
08 Wave washer B5 1 07/1981 07119932047 $0.09 ENDED
08 Wave washer B5 1 07119932098 $0.38
09 Suppression capacitor alternator BOSCH 1 12311356564 $18.88 +core
10 Insulating cover 6MM 1 12311356217 $2.95 ENDED
11 Ground cable L=170MM 1 12521285011 $15.59 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
