5' E12 528i Alternator, individual parts

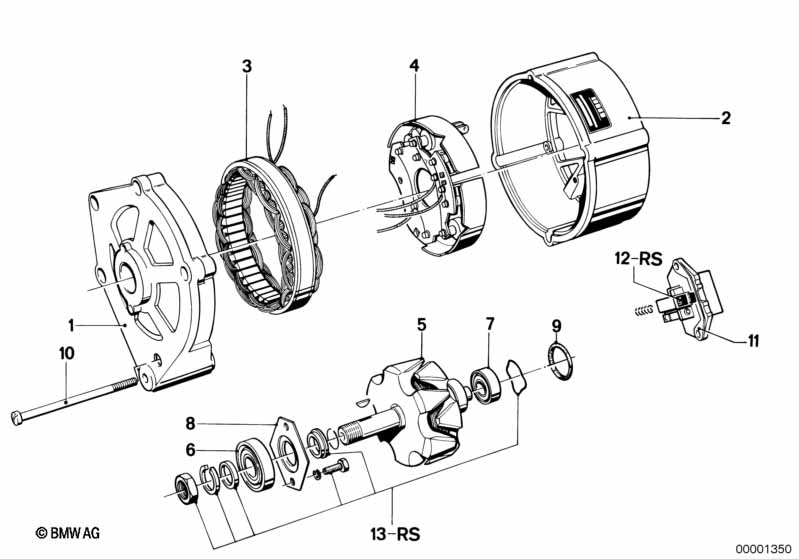

Alternator, individual parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
only applies to
-- Alternator 65A X 12311277219
01 Housing assy front 1 12311363094 $103.23 ENDED
02 Housing assy rear 1 12311279590 $62.50 ENDED
03 Stator assy 1 12311727757 $119.41 ENDED
04 Diode assy 1 12311706465 $86.49 ENDED, +core
05 Rotor 1 12311279588 $118.30 ENDED
06 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
07 Grooved ball bearing 32X12X10 1 12311739203 $21.20
08 Supporting plate 1 12311459279 $1.12
09 O-ring 1 12311279541 $0.73 ENDED
09 Diode assy 1 12311706465 $86.49 ENDED, +core
10 Fillister-head screw 4 12311358012 ENDED
11 Voltage regulator 1 12311726022 $124.68
12 Carbon brush set 1 12311727756 $18.07
13 Repair kit rotor 1 12311350332 $14.45
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
