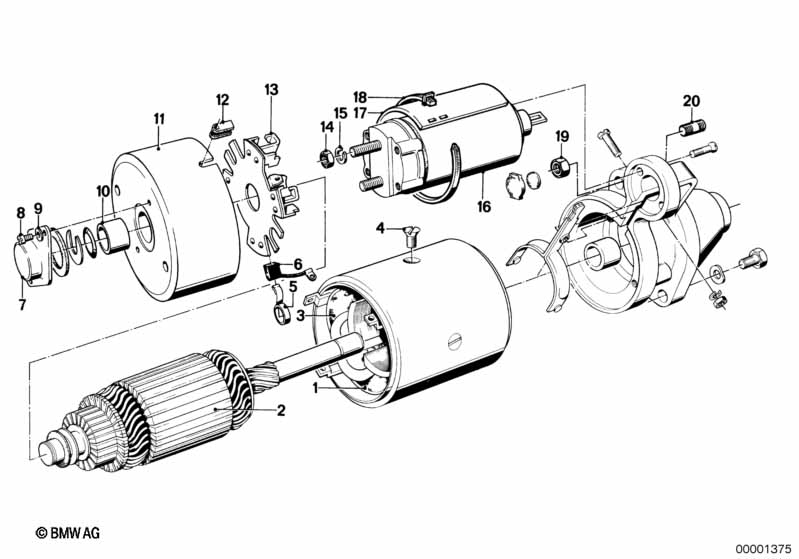

5' E12 528i Starter parts

Starter parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ-Nr. 0 001 311 042 1,3kw
01 Exciter winding 1 12411354569 ENDED
02 Armature 1 12411354574 ENDED
03 Insulating 1 12411354570 ENDED
04 Countersunk head screw 4 12411354571 ENDED
05 Compression spring 4 12418620143 $1.04 ENDED
06 Carbon brush set 1 12411354576
07 Covering cap 1 12411289491 $1.32 ENDED
08 Fillister-head screw AM4X8 2 07/1981 07119919367 $0.09 ENDED
08 ISA screw M4X8-8.8 2 07129904838 $2.58
09 Wave washer B4 2 07119932033 $0.09
10 Bushing 1 12411722916 $3.85
11 Collector guiding 1 12411268371 $15.62 ENDED
12 Rubber grommet 1 12418620102 ENDED
13 Brush holder plate 1 12411274607 $19.96
14 Hex nut BM8 1 07119921077 $0.13 ENDED
14 Hex nut M8-05-ZNNIV SI 1 07119904948 $1.00
15 Spring washer B8 1 07119933096 $0.18
16 Solenoid switch 1 12411354579 $106.41
17 Cable tie L=292MM/B=4,8MM 2 61131377134 $0.77
18 Covering solenoid switch 1 61131361340 $3.02
19 Hex nut M10-8-ZNS 1 07119915558 $0.88
Notes
  • ENDED = the part has been discontinued (no longer available).
