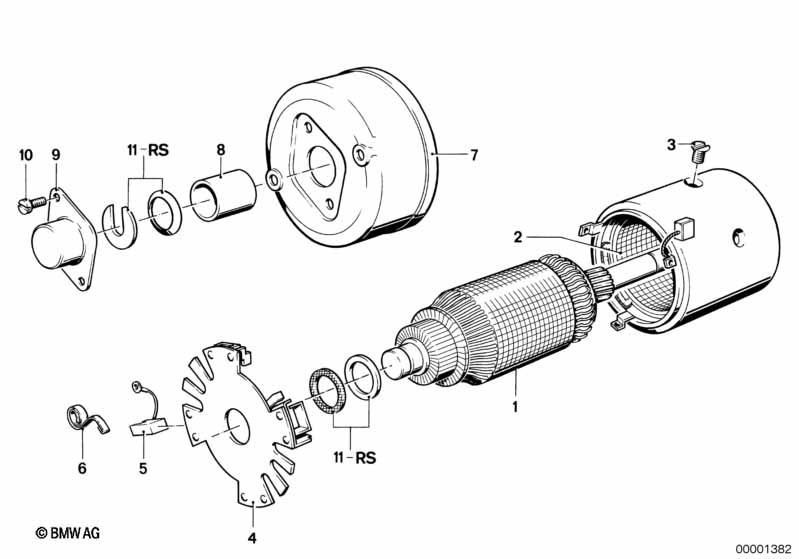

5' E12 528i Starter parts

Starter parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ-Nr.0 001 314 025 1,5kw
01 Armature 1 12411273226 ENDED
03 Countersunk head screw 4 12411354571 ENDED
05 Carbon brush set 1 12411273234 ENDED
06 Compression spring 4 12411268373 $0.39
07 Collector guiding 1 12411268371 $15.62 ENDED
08 Bushing 1 12411722916 $3.85
09 Covering cap 1 12411289491 $1.32 ENDED
10 Fillister-head screw AM4X8 2 07/1981 07119919367 $0.09 ENDED
10 ISA screw M4X8-8.8 2 07129904838 $2.58
11 Repair kit starter motor 1 12411268377 $5.40
Notes
  • ENDED = the part has been discontinued (no longer available).
