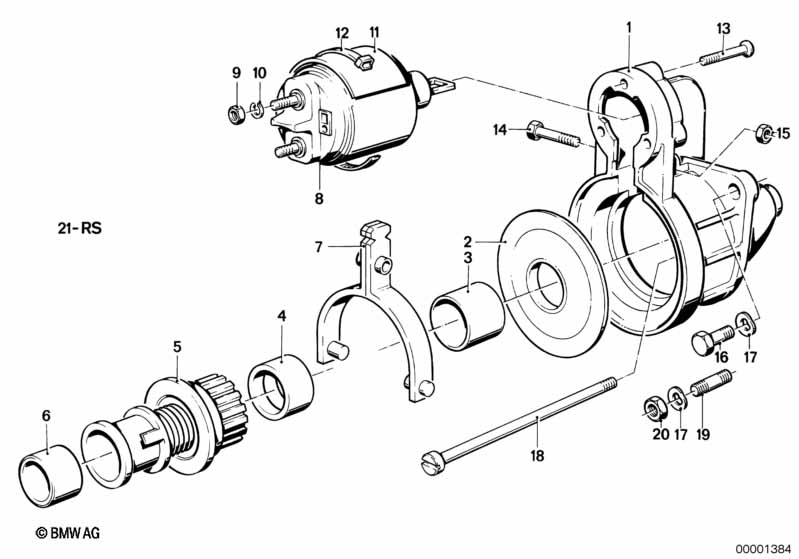

5' E12 528i Starter parts

Starter parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i Typ-Nr.0 001 314 025 1,5kw
01 Housing assy front 1 12411272130 $47.15 ENDED
02 Bearing cover 1 12411273229 ENDED
03 Bushing 1 12411722917 $3.74
04 Ring 1 12411722915 $3.63
05 Starter pinion 1 12411273224 $51.32 ENDED
06 Bushing 2 11511722914 $5.19 ENDED
07 Shift lever 1 12411268368 $10.22
08 Solenoid switch 1 12411273228 $103.45
09 Hex nut M8-ZNS 1 07119922856 $0.56 ENDED
09 Hex nut M8-8-ZNS3 1 07/1981 07119904032 $0.16
09 Hex nut M8-8-ZNNIV SI 1 07119905515 $0.16
10 Spring washer B8 1 07119933096 $0.18
11 Covering solenoid switch 1 61131361340 $3.02
12 Cable tie L=292MM/B=4,8MM 1 61131377134 $0.77
13 Countersunk head screw 3 12411721286 $2.45
14 Hex bolt 1 12411273237 $1.52 ENDED
15 Hex nut M6 1 08/1996 23112322368 $0.38 ENDED
15 Hex nut M6-8-ZNS 1 07119922832 $0.37 ENDED
15 Hex nut M6-8-ZNNIV SI 1 07119905543 $0.38
16 Hex bolt M10X25-8.8 ZN 2 07/1981 07119914114 $0.47 ENDED
16 Hex bolt M10X25 8.8 2 07/1981 07119902110 ENDED
16 Hex bolt M10X25 8.8 2 07119908569
16 Hex bolt M10X25-8.8 ZN 2 07119913834 $0.71
17 Wave washer B10-ZN 2 07119932112 $0.11 ENDED
17 Wave washer B10-ZNS 2 07/1981 07119932122 $0.38 ENDED
17 Wave washer B10-ZNS3 2 07119904463
18 Fillister-head screw 2 12411354577 ENDED
20 Hex nut M10-8-ZNS 1 07119915558 $0.88
21 Repair kit starter motor 1 12411268377 $5.40
Notes
  • ENDED = the part has been discontinued (no longer available).
