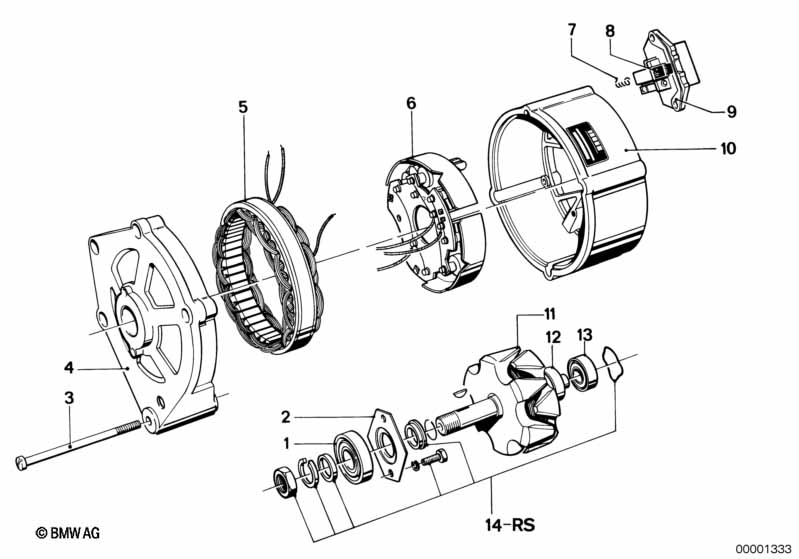

5' E12 528i Alternator, individual parts

Alternator, individual parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Grooved ball bearing 40X17X12 1 12311714522 $17.93 ENDED
only applies to
-- Alternator 65A X 12311277219
02 Supporting plate 1 12311459279 $1.12
only applies to
-- Alternator 65A X 12311277219
03 Fillister-head screw 1 12311354683 ENDED
only applies to
03 Fillister-head screw 3 12311358012 ENDED
only applies to
-- Alternator 65A X 12311277219
04 Housing assy front 1 12311363094 $103.23 ENDED
only applies to
-- Alternator 65A X 12311277219
05 Stator assy 1 12311727757 $119.41 ENDED
only applies to
-- Alternator 65A X 12311277219
06 Diode assy 1 12311706465 $86.49 ENDED, +core
only applies to
-- Alternator 65A X 12311277219
07 Compression spring 2 12311268412 $0.35
only applies to
-- Alternator 65A X 12311277219
08 Carbon brush set 1 12311354681 $4.08 ENDED
only applies to
-- Alternator 65A X 12311277219
09 Voltage regulator BOSCH 1 12311286073 $63.58 ENDED
only applies to
-- Alternator 65A X 12311277219
10 Repair kit rotor 1 12311350332 $14.45
10 Housing assy rear 1 12311363096 $64.73 ENDED
only applies to
-- Alternator 65A X 12311277219
11 Rotor 1 12311363095 $114.95 ENDED
only applies to
-- Alternator 65A X 12311277219
12 Slip ring 1 12311354689 ENDED
only applies to
-- Alternator 65A X 12311277219
13 Grooved ball bearing 32X12X10 1 12311739203 $21.20
only applies to
-- Alternator 65A X 12311277219
14 Repair kit rotor 1 12311350332 $14.45
only applies to
-- Alternator 65A X 12311277219
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
