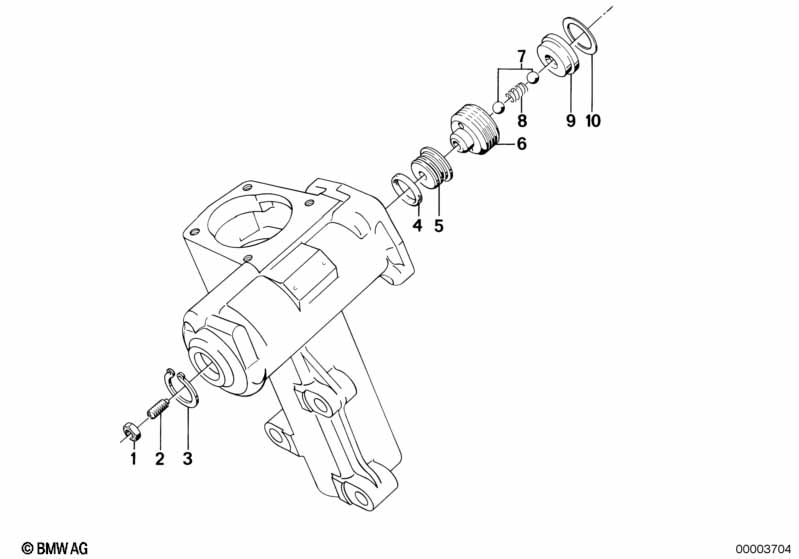

5' E12 528i Hydro steering box, single components

Hydro steering box, single components
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Hex nut 1 32131106920 ENDED
02 Grub screw M6X16 X 07119904020 ENDED
03 Lock Ring 24X1,2 1 07119934160 $0.20
04 O-ring 1 32131106262 ENDED
05 Plug 1 32131106742 ENDED
06 Valve washer 1 32131106265 ENDED
07 Ball 9MM III 2 07119986298 $0.59
08 Compression spring 1 32131106276 ENDED
09 Valve washer 1 32131104821 ENDED
10 Shim 1,900MM 1 32131111897 ENDED
10 Shim 2,000MM 1 32131111898 ENDED
10 Shim 2,100MM 1 32131111899 ENDED
10 Shim 2,200MM 1 32131111900 ENDED
10 Shim 2,300MM 1 32131111901 ENDED
10 Shim 2,400MM 1 32131111902 ENDED
10 Shim 2,500MM 1 32131111903 ENDED
10 Shim 2,600MM 1 32131111904 ENDED
10 Shim 2,700MM 1 32131111905 ENDED
10 Shim 2,800MM 1 32131111906 $3.11 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
