5' E12 528i Pedals-supporting bracket

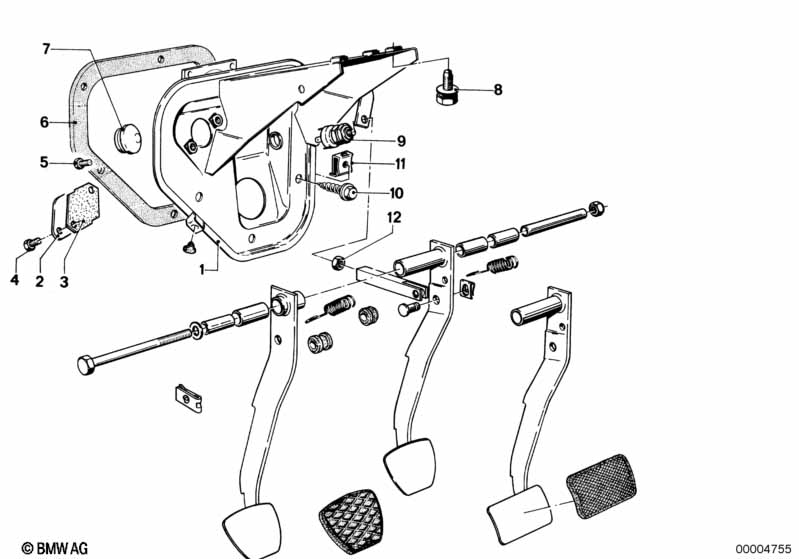

Pedals-supporting bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket 1 09/1976 35111117947 ENDED
02 Covering plate 1 35111117557 $0.56
03 Gasket 1 35111117687 ENDED
04 Hex bolt with washer M8X16-Z3 2 07119915066 $0.62
05 Hex bolt M8X10 2 07119913610 $0.32 ENDED
06 Gasket 1 35111116470 ENDED
08 Hex bolt with washer M8X20-Z3-1 1 07119915178 $0.71
09 Stop light switch 1 61311368786 $38.77
10 Hex head screw B6,3X19 6 35111150944 $3.40 ENDED
11 Body nut 6 35111151542 ENDED
12 Hex nut M10-8-ZNS 1 07119915558 $0.88
Notes
  • ENDED = the part has been discontinued (no longer available).
